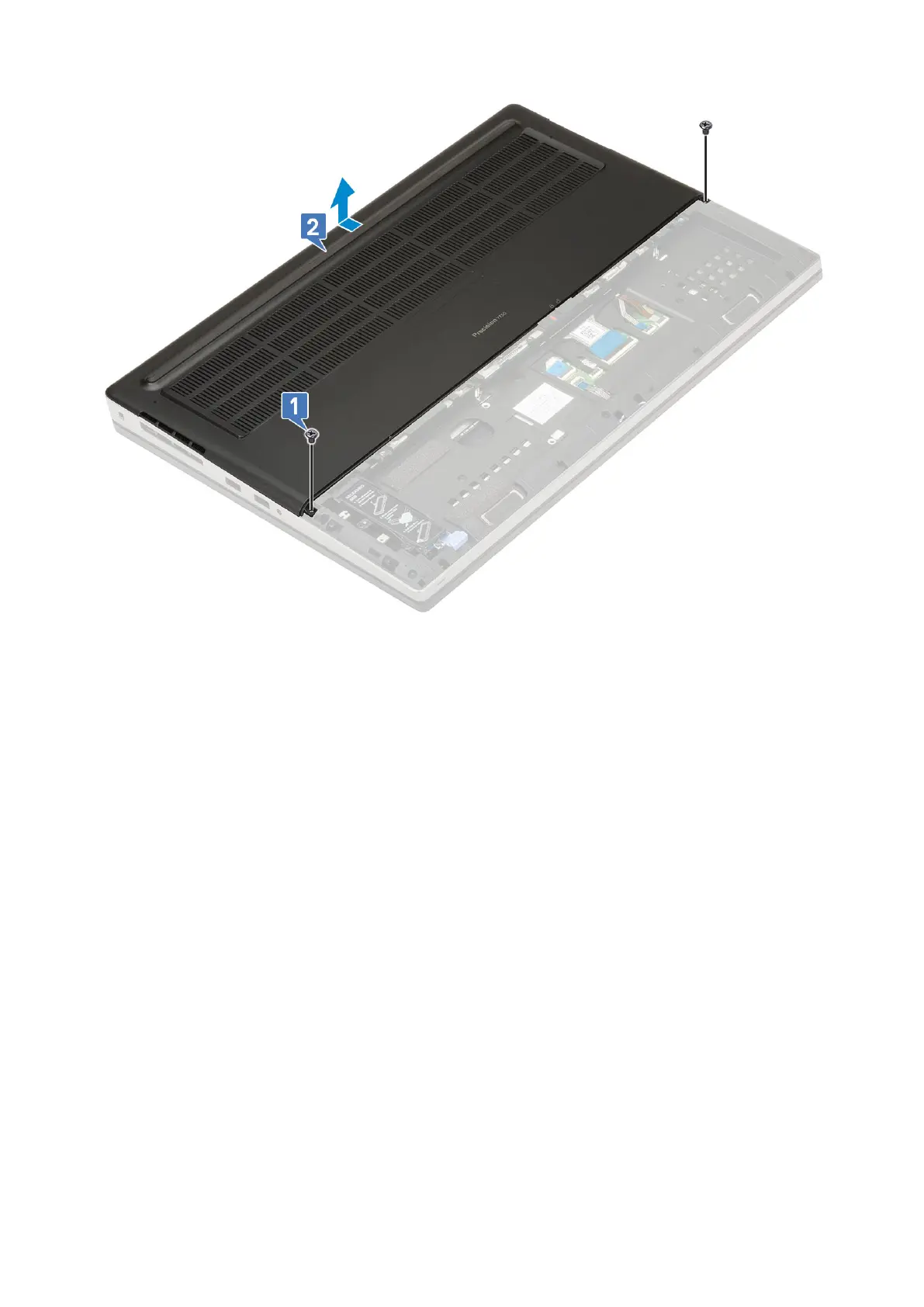

Installing the base cover
1. To install the base cover:
a. Slide the base cover to align with the screw holes on the system [1].
b. Replace the 2 (M2.5X5.0) screws to secure the base cover to the system [2].
34
Removing and installing components
