Installing the smart card cage

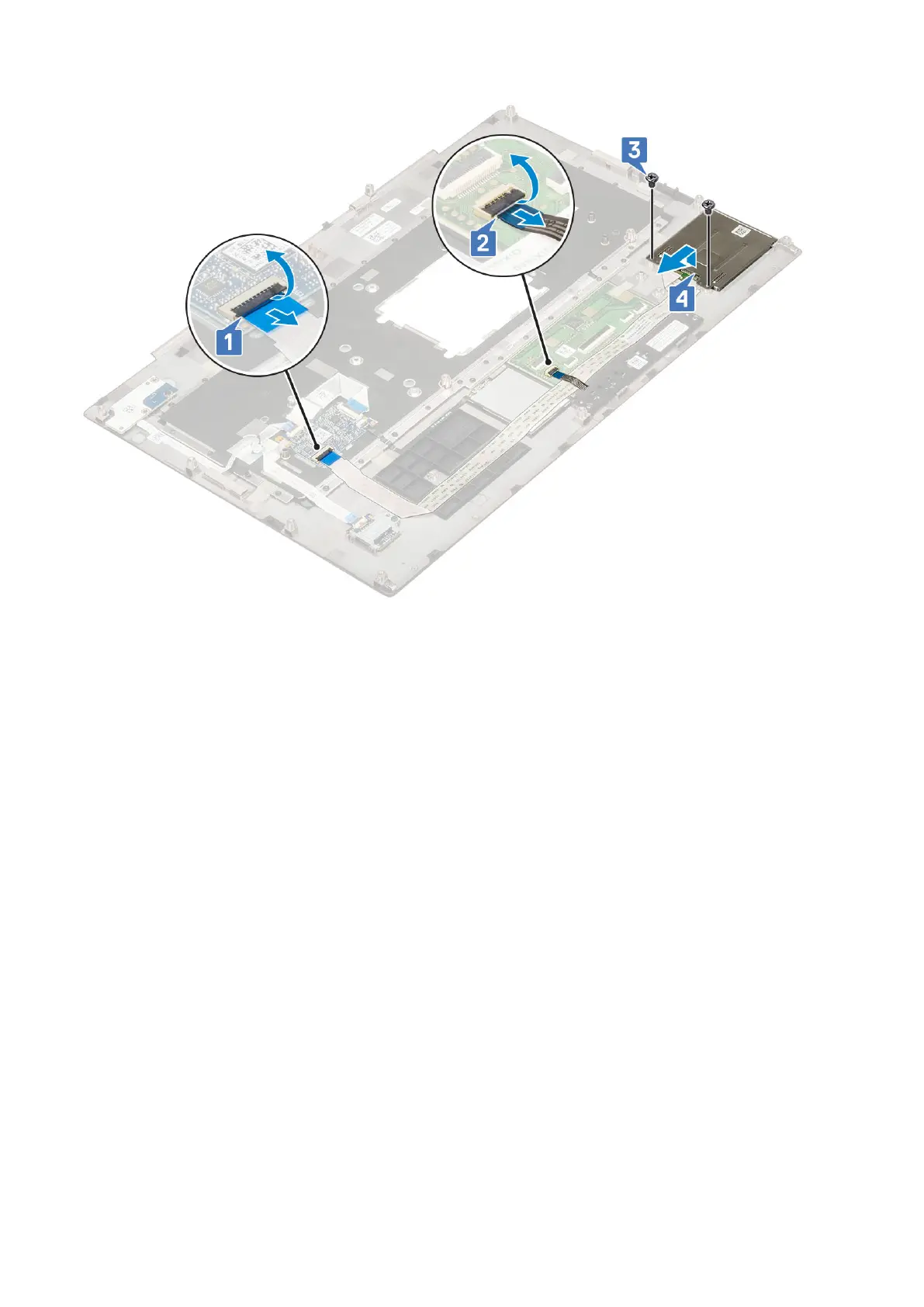

1. To install the smart card cage:
a. Place the smart card cage into its slot in the system [1].
b. Replace the 2 (M2.0X3.0) screws to secure the smart card cage to the system [2].
c. Affix the smart card cable .
d. Connect the touchpad button cable to the connector on the touchpad [3].
e. Connect the smart card cage cable to the connector on the system [4]
Removing and installing components
65
