Installing the keyboard
1. To Install the keyboard:
a. Align the keyboard and route the cables back through to the bottom of the compartment.

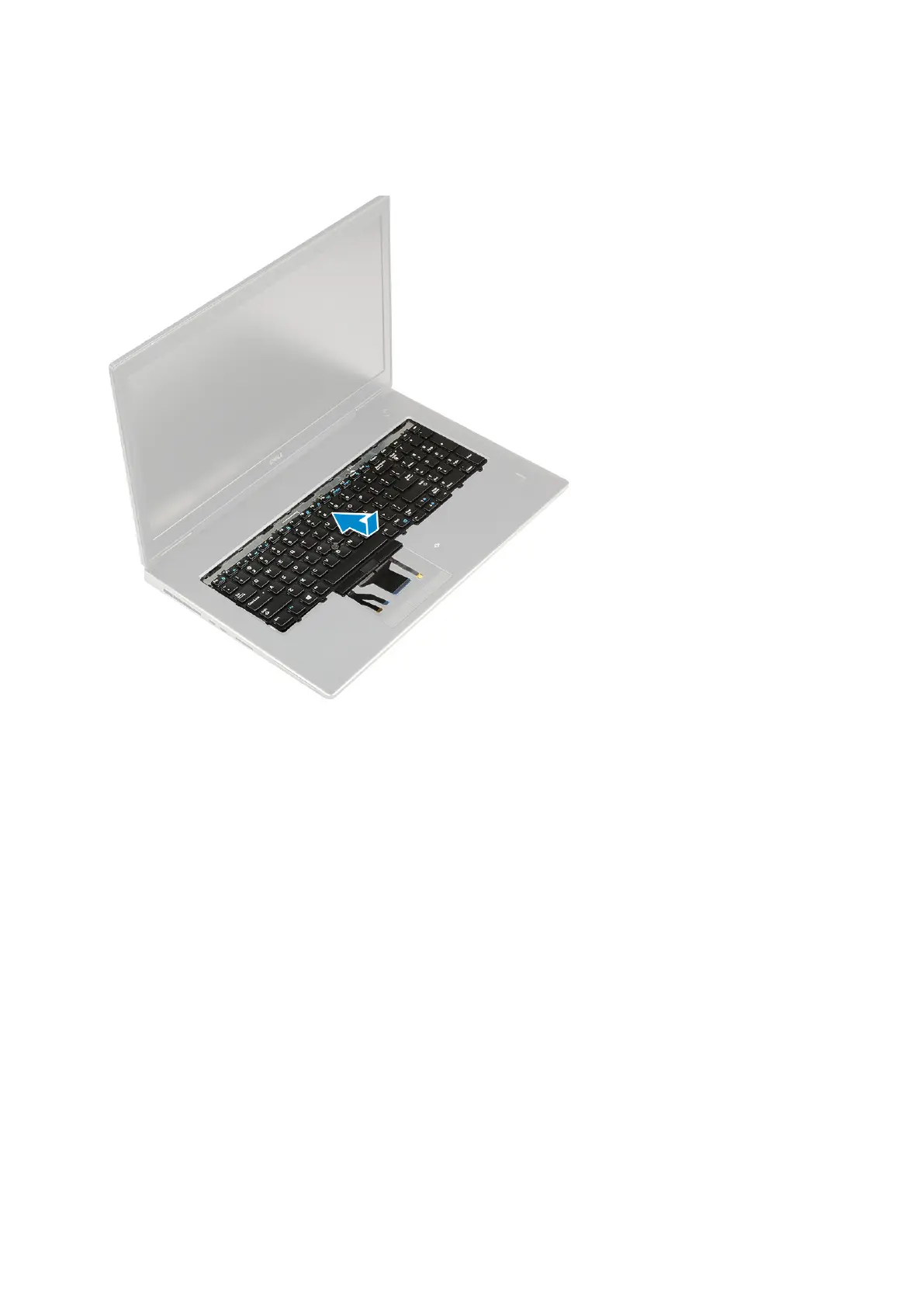

b. Press and align the keyboard to its compartment working along the left, right and bottom edges [1,2,3].
c. Replace the 5 (M2.0x2.5) screws to secure the keyboard to the palmrest [4].
Removing and installing components
31
