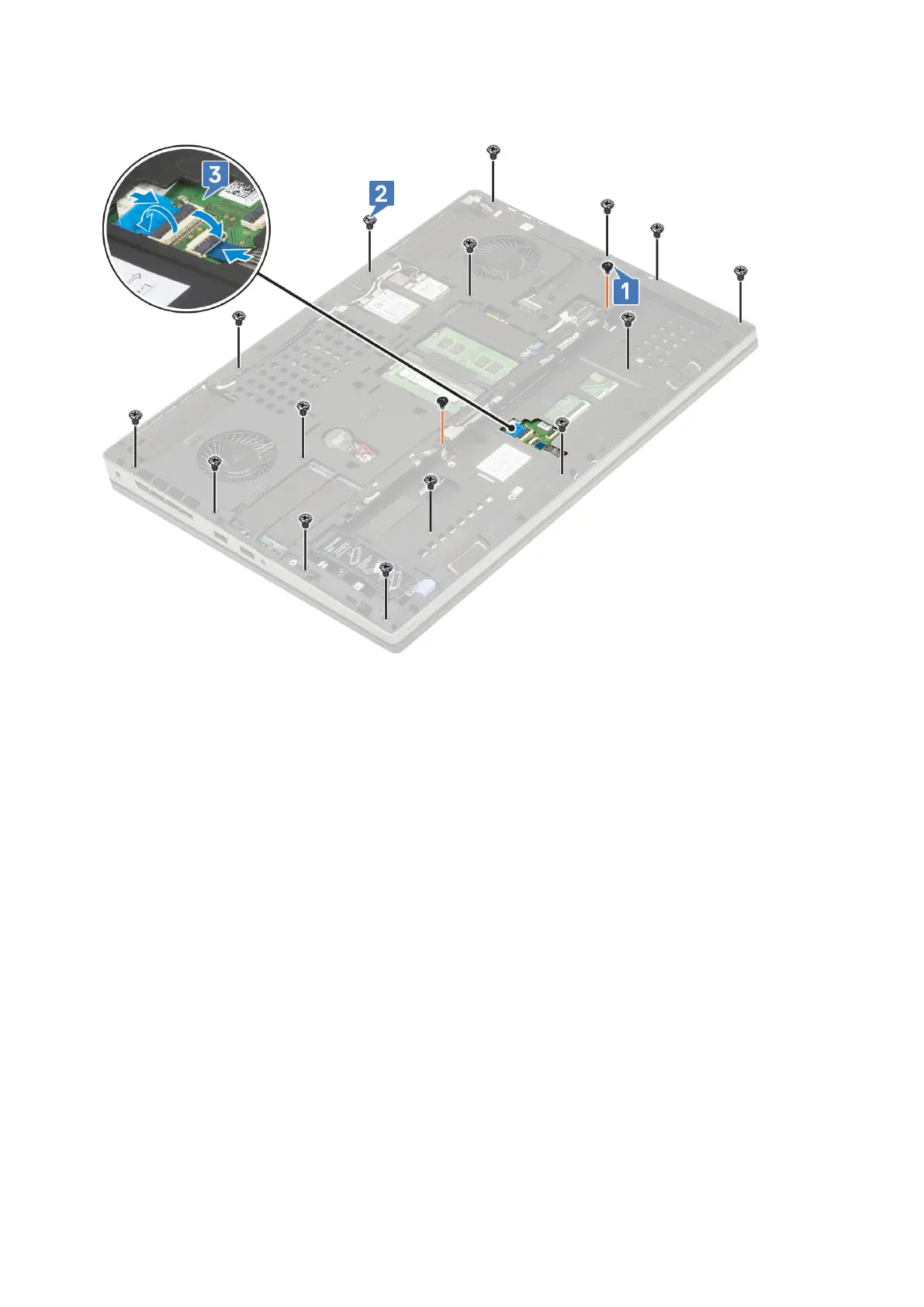

d. Turn the system and replace the 15 (M2.5x5.0) and the 2 (M2.0x3.0) screws to secure the palmrest to the system [1, 2].
e. Connect the touchpad and touchpad button cables to the connectors on the system board and lock the latch [3].
2. Install the:
a. base cover
b. keyboard
c. hard disk
d. battery
e. battery cover
f. SD card
3. Follow the procedure in After working inside your computer.
Touchpad button
Removing the Touchpad buttons
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. SD card
b. battery cover
c. battery
d. keyboard
e. hard drive
f. base cover
g. palmrest
3. To remove touchpad buttons:
a. Disconnect the touchpad cable from the touchpad [1].
60
Removing and installing components
