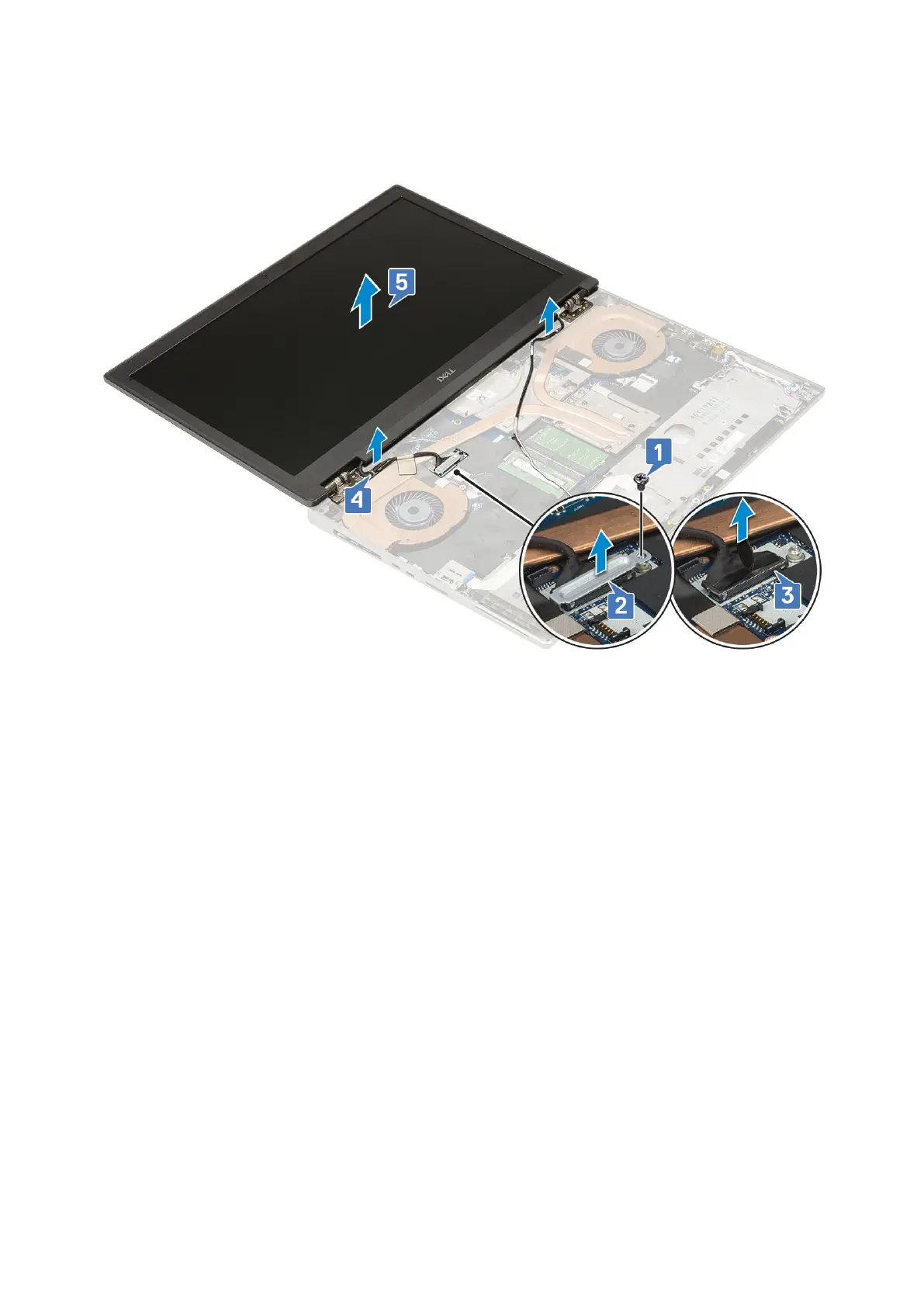

i. Disconnect the eDP cable from the connector on the system board [3].
j. Peel the adhesive tape that secures the eDP cable in place [4].
k. Unroute the wireless cable from the routing channels located next to the hinges .
l. Remove the display assembly [5].
Installing the display assembly
1. To install display assembly:
a. Align the display assembly into the slots on the system [1].
b. Route the wireless cable located next to the hinges .
c. Affix the adhesive tape to secure the eDP cable in place [2].
d. Connect the eDP cable to the connector on the system board [3].
e. Place the eDP cable bracket and replace the single (M2.0x3.0) screw to secure the eDP cable bracket to the system
board [4, 5].
