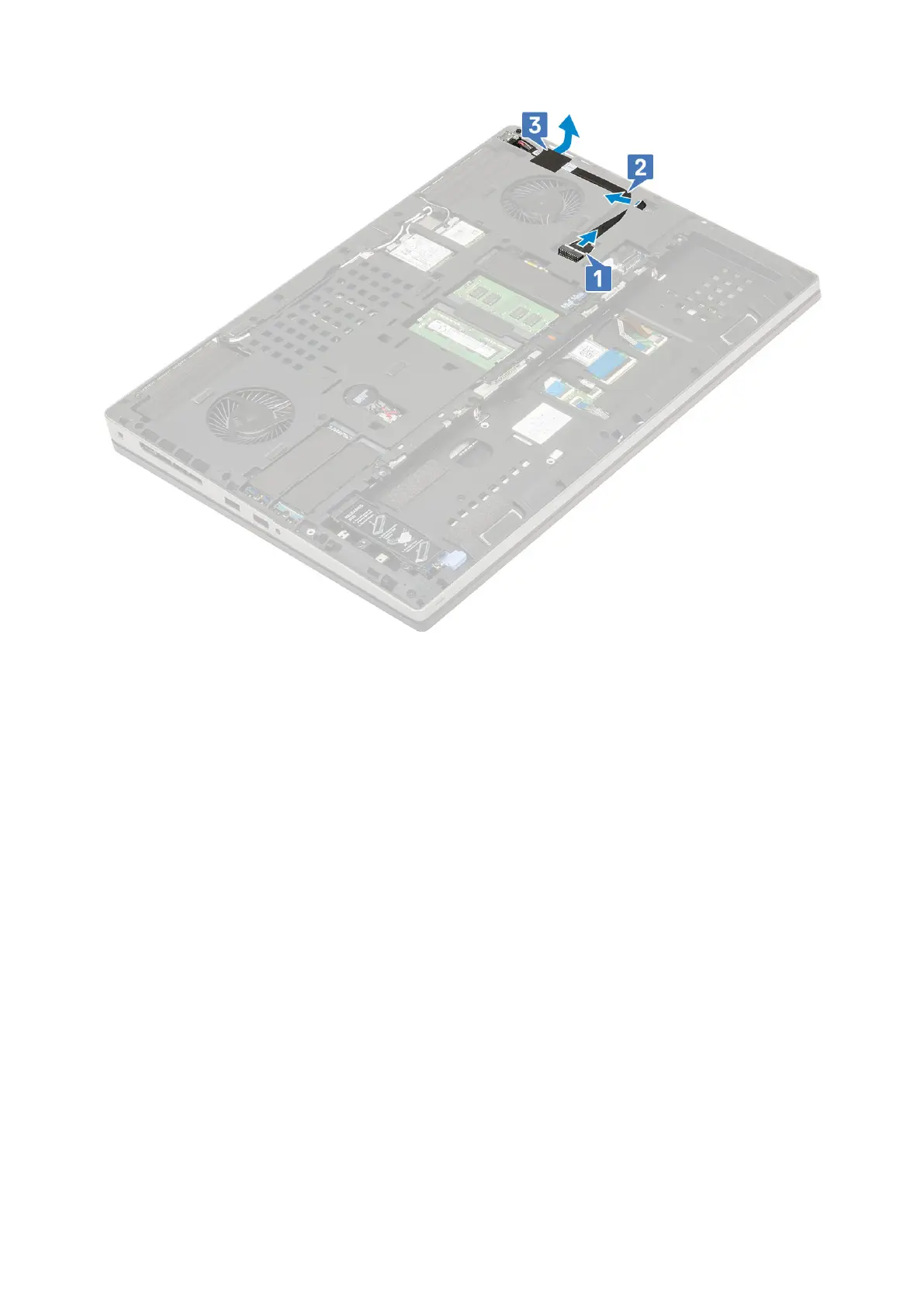

c. Remove the single (M2.0x3.0) screw that secures the power connector cable metal bracket to the system [1].
d. Remove the metal bracket away from the system [2].
e. Lift the power connector port from the system [3].
