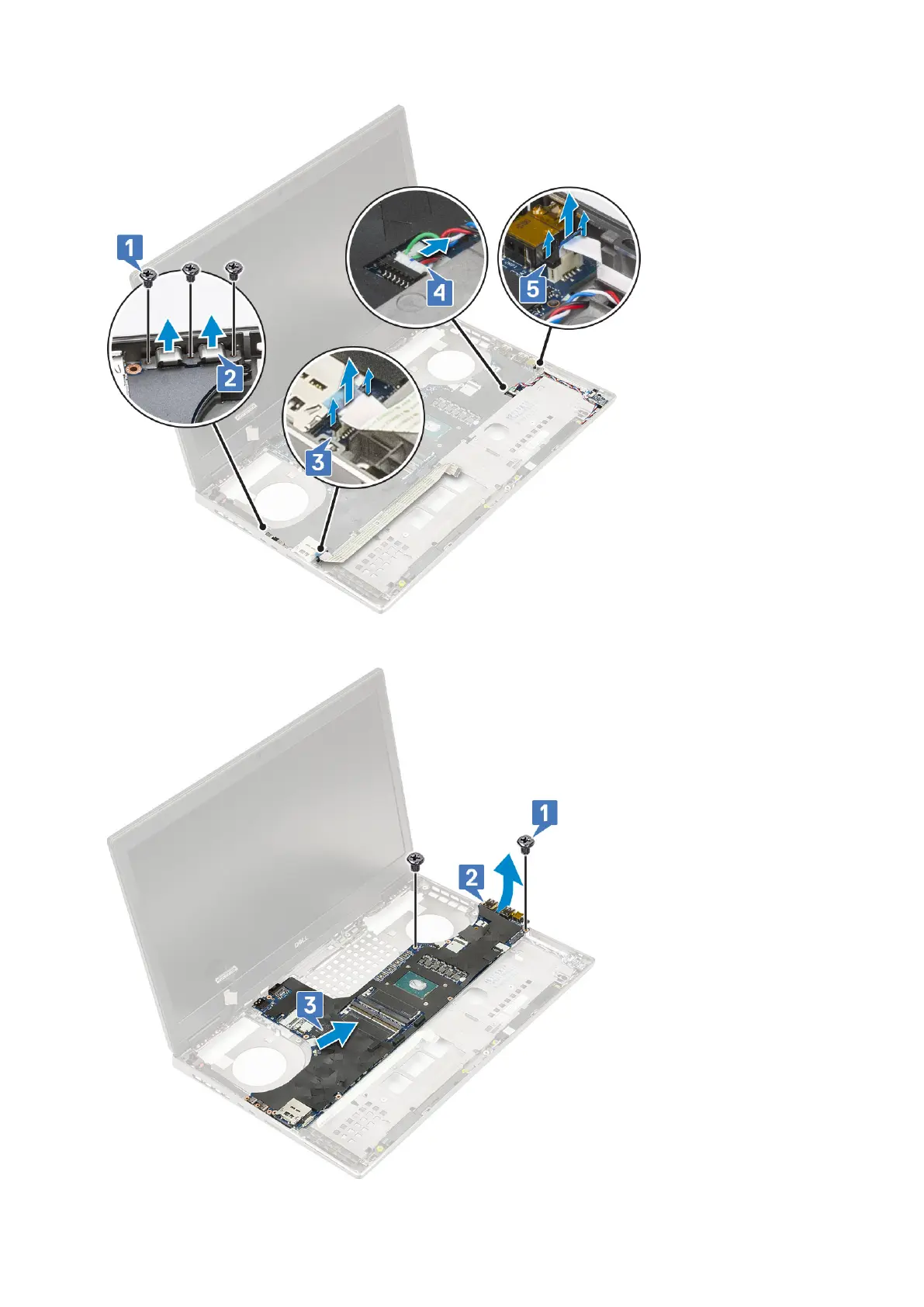

e. Remove the 2 (M2.5x5.0) screws that secure the system board in place [1].
f. Lift the right side of the system board and remove the system board from the system chassis [2, 3].
Removing and installing components
81
