Dell PowerConnect 7024 User Manual

Configuring Class-of-Service 1119
Configuring CoS (Web)
This section provides information about the OpenManage Switch
Administrator pages for configuring and monitoring CoS features on a
PowerConnect 7000 Series switch. For details about the fields on a page, click
at the top of the page.
Mapping Table Configuration
Use the Mapping Table Configuration page to define how class of service is
assigned to a packet.
To display the
page, click Quality of Service → Class of Service → Mapping
Table Configuration in the navigation panel. CoS(802.1P) is the default
mode, so this is the page that displays when Mapping Table Configuration is
selected from the Class of Service menu page.

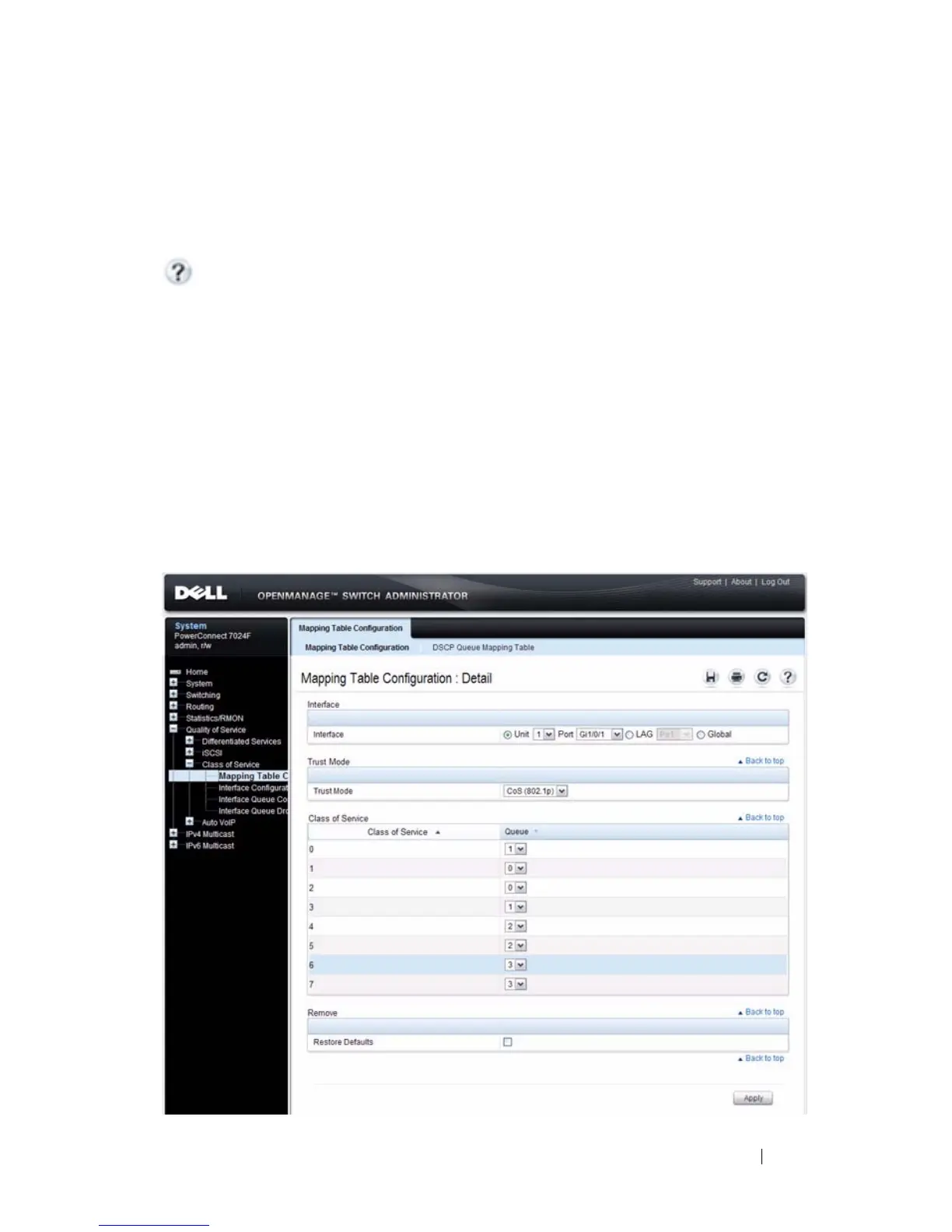

Figure 40-1. Mapping Table Configuration — CoS (802.1P)
