Managing IPv4 and IPv6 Multicast 1161

IGMP Interface Source List Information

Use the Source List Information

page to display detailed membership

information for an interface. Group membership reports must have been

received on the selected interface for data to display information.

To display the page, click IPv4 Multicast

→

IGMP

→

Routing Interface

→

Source List Information in the navigation panel.

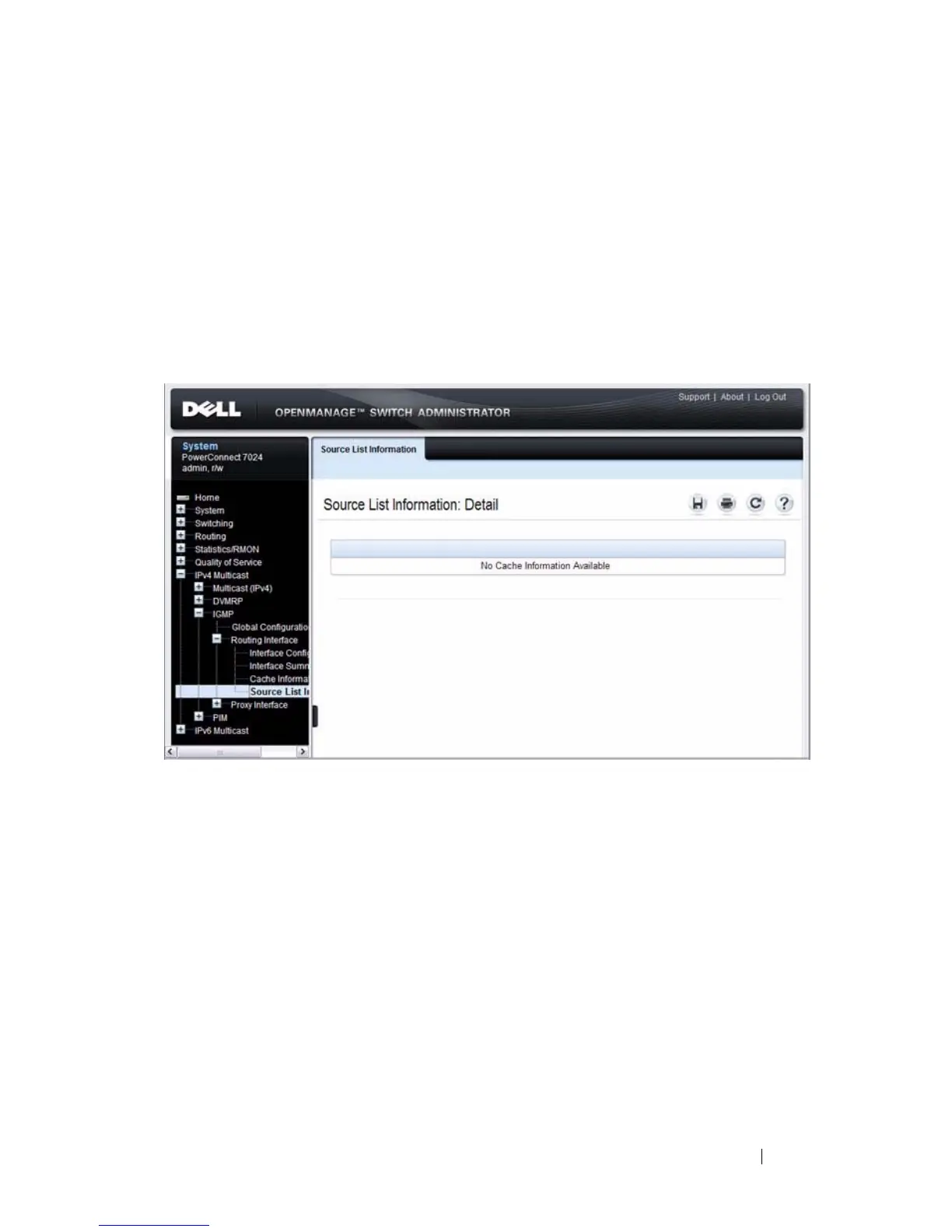

Figure 42-13. IGMP Interface Source List Information
