Configuring Access Control Lists 551
MAC ACL Rule Configuration
Use the MAC ACL Rule Configuration page to define rules for MAC-based
ACLs. The access list definition includes rules that specify whether traffic
matching the criteria is forwarded normally or discarded. A default deny all
rule is the last rule of every list.
To display the MAC ACL Rule Configuration page, click Switching
→
Network Security
→ Access Control Lists → MAC Access Control Lists →
Rule Configuration in the navigation panel.

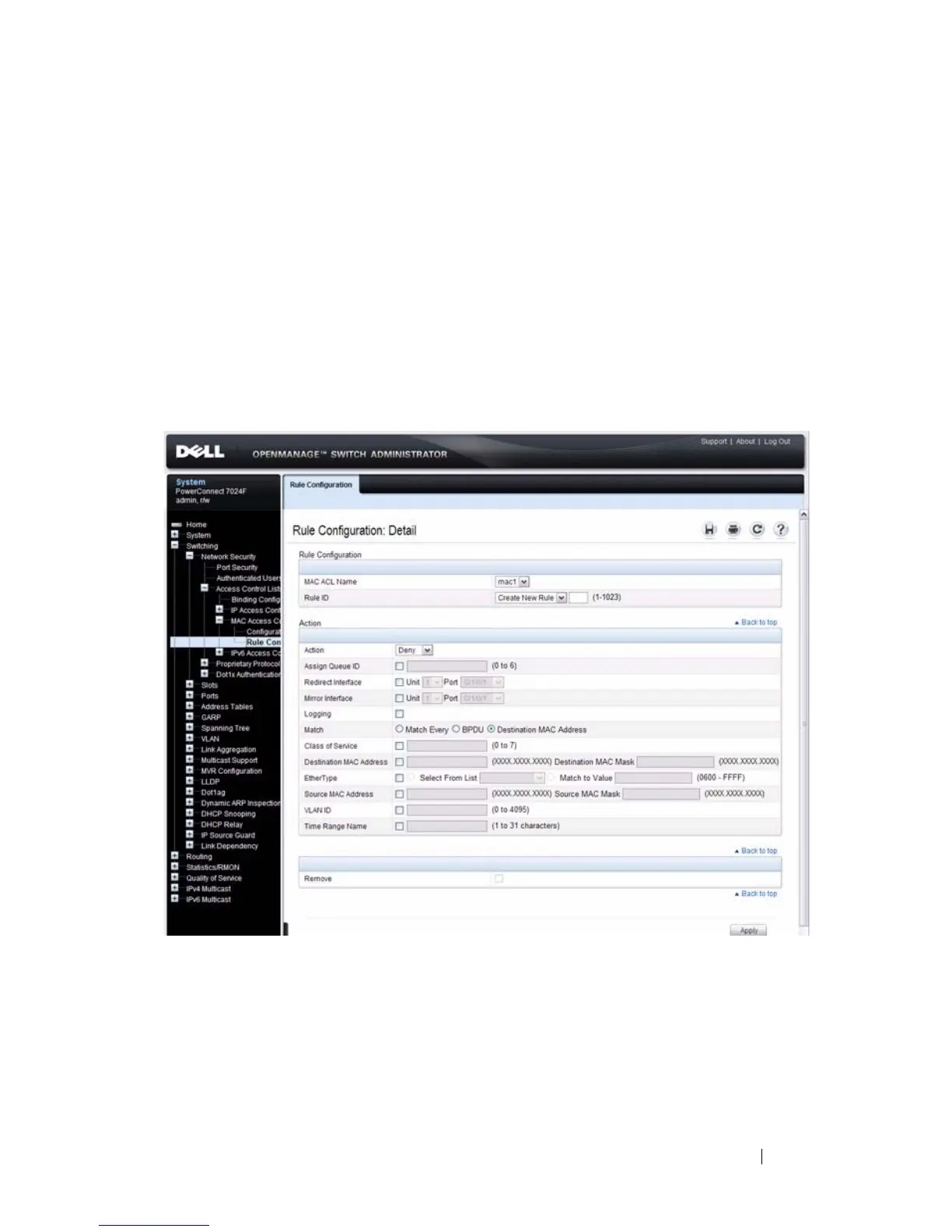

Figure 20-7. MAC ACL Rule Configuration
Removing a MAC ACL Rule
To delete a MAC ACL rule:
1
From the Rule ID menu, select the ID of the rule to delete.
2 Select the Remove option near the bottom of the page.
3 Click Apply to remove the selected rule.
