550 Configuring Access Control Lists

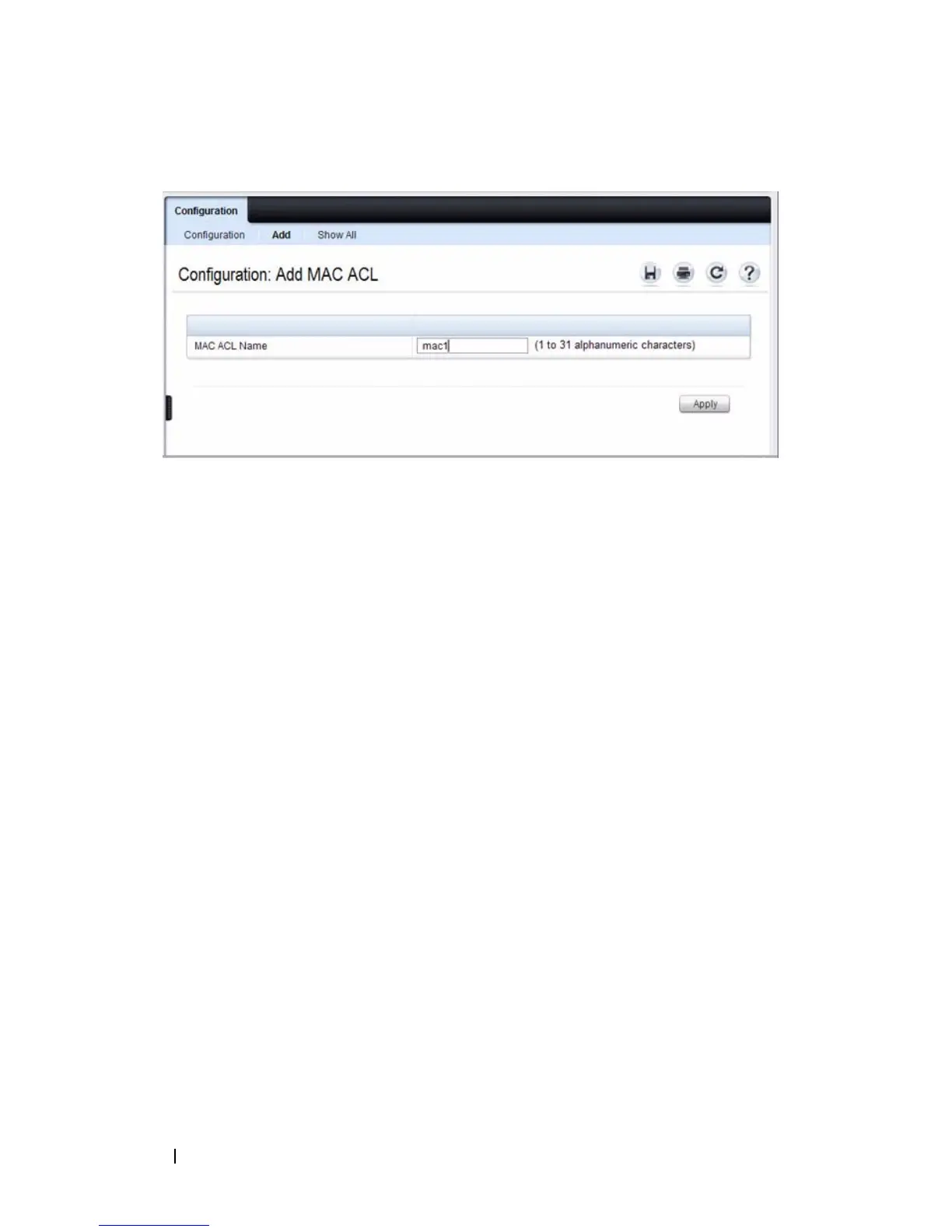

Figure 20-6. Add MAC ACL

Click

Apply

Renaming or Removing MAC ACLs

To rename or delete a MAC ACL:

From the

MAC ACL Name

menu on the

MAC ACL Configuration

page, select the ACL to rename or remove.

To rename the ACL, select the

Rename

checkbox and enter a new name in

the associated field.

To remove the ACL, select the

Remove

checkbox.

Click

Apply

Viewing MAC ACLs

To view configured ACLs, click Show All from the MAC ACL Configuration

page.
