1212 Managing IPv4 and IPv6 Multicast

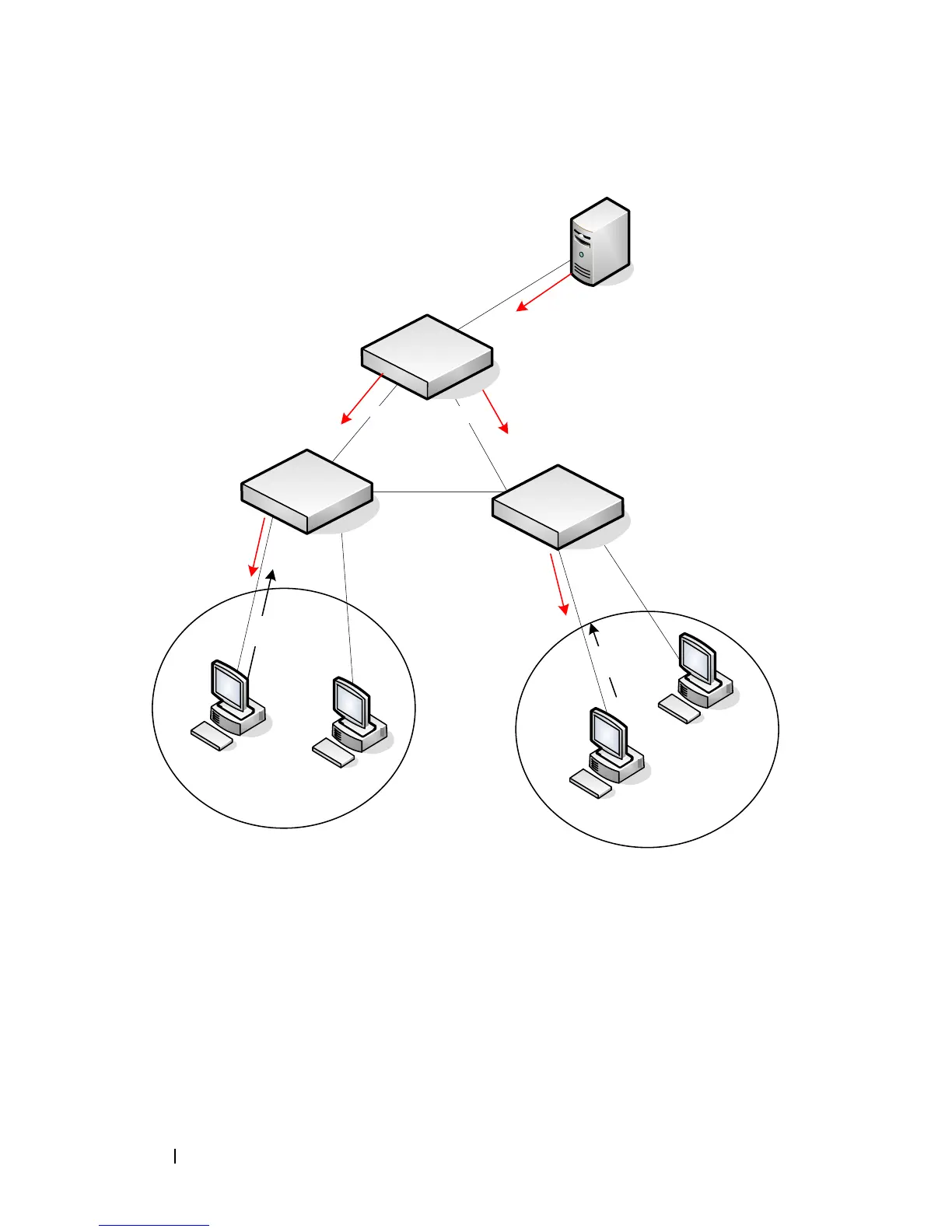

Figure 42-47. IPv4 Multicast VLAN Routing

In addition to multicast configuration, this example includes commands to

configure STP and OSPF on L3 Switch A. STP is configured on the ports that

connects the switch to other switches. OSPF is configured to route unicast

traffic between the VLANs.

To configure the switch:

Create the two VLANs.

console#configure

console(config)#vlan database

Port 23 Port 24

L3 Switch A

(PIM RP)

Video Server

VLAN 10

Members

VLAN 20

Members

IGMP

Join

L3 Switch B

L3 Switch C

IGMP

Join
