4. To configure packet identification rules, click the Configure packet identification rules link on the Groups >
PTMP/Wimax configuration page and define the settings as required. Packet identification rules are used to
define which packets match a subscriber station class. Figure 62 illustrates this pa
ge and Table 72 describes
the settings and default values.

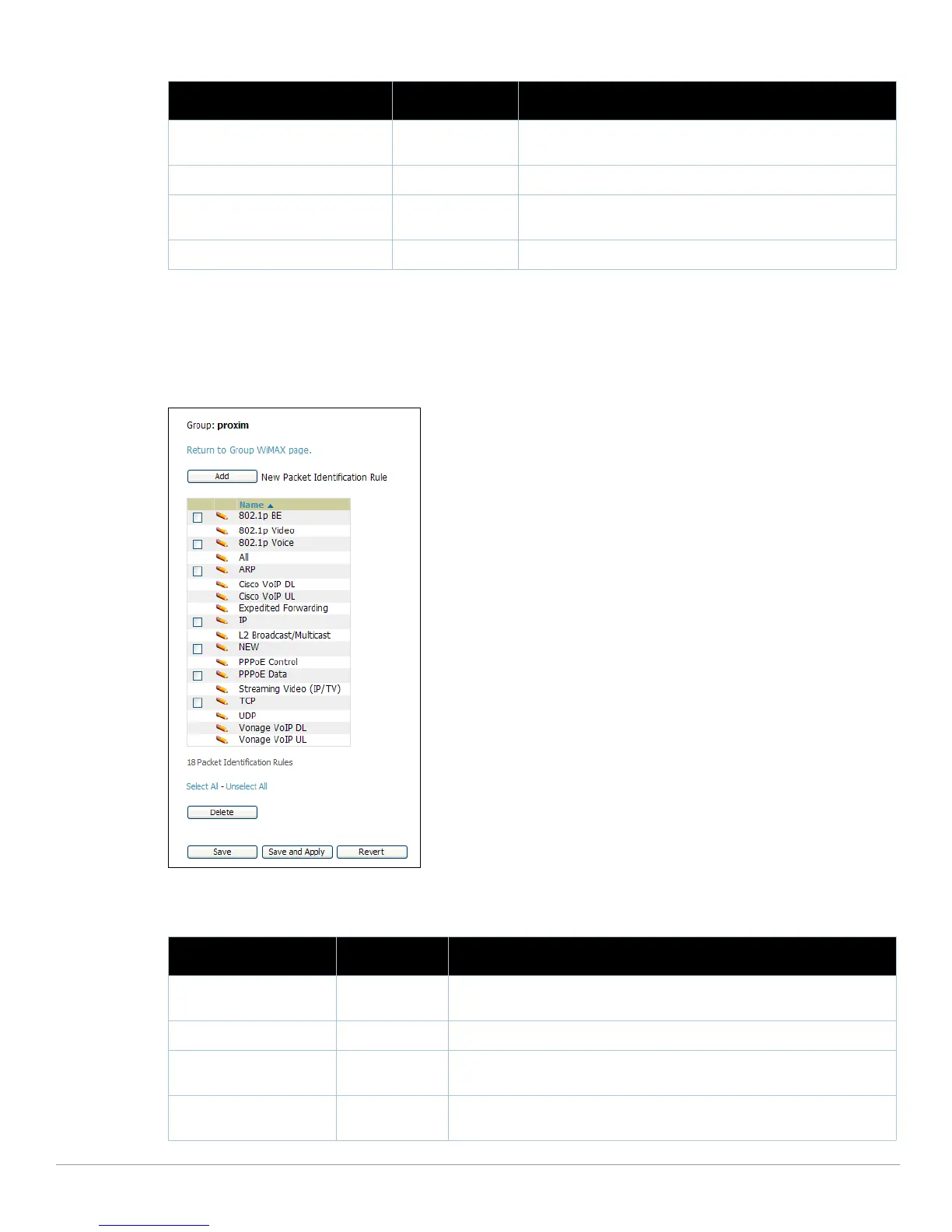

Figure 62 Group
s > PTMP/WiMAX Configuring Packet Identification Rules Page Illustration
802.11g Radio Channel 10 Selects the channel used for 802.11g radios by the devices in this
group.
Channel Bandwidth 20 Defines the channel bandwidth used by the devices in this group.
Network Name Wireless Network Sets the Network name, with a range of length supported from
two to
32 alphanumeric characters.
Network Secret None Sets a shared password to authenticate clients to the network.
Table 72 PTMP/WiMAX Configuring Packet Identification Rules Fields and Default Values
Setting Default Description
Name None Text field defines a name for the PIR. The name should be meaningful and
descriptive. The name is used to define the subscriber station class.
Use IP TOS No Identifies packets based on IP T
ype-of-Service for the PIR.
Minimum TOS Value
(positive integer)
0 Specifies the minimum TOS used to identify packets.
Maximum TOS Value
(positive integer)
0 Specifies the maximum TOS used to
identify packets
Table 71 Groups > PTMP/WiMAX Fields and Default Values
Setting Default Description
