282 | Creating, Running, and Emailing Reports Dell PowerConnect W AirWave 7.1 | User Guide

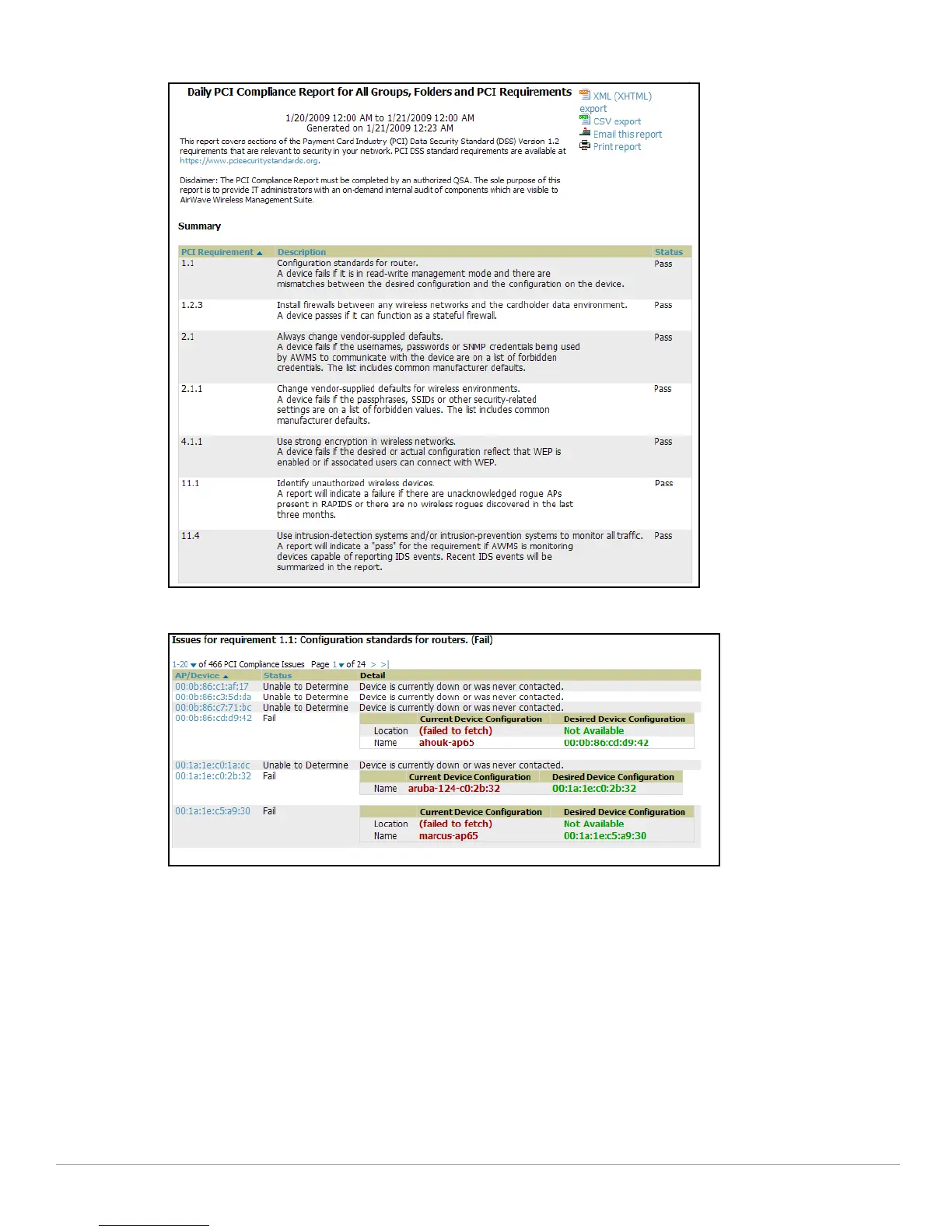

Figure 196 Reports > Generated > PCI Compliance Report Illustration, Pass or Fail Example
Figure 197 Re
ports > Generated > PCI Compliance Report Illustration Example
Using the Port Usage Report
You can generate a wide array of port usage statistics from the Port Usage Report feature, including each of the
following:
 List of all the switches and ports in your network by folder
 List of unused ports
 List of access and distribution ports
 Histogram displaying unused ports vs. unused switches by type (access or distribution)
 List of most used switches
 List of most used ports
Perform these steps to view the most
recent version of the Port Usage Report.
