Using the Capacity Planning Report
The Capacity Planning Report tracks device bandwidth capacity and throughput in device groups, folders, and
SSIDs. This report assists in analyzing device capacity and performance on the network, and such analysis can
help to achieve network efficiency and improved experience for users.
This report is based on interface-level activity.
The information in this report can be sorted by any column header
in sequential or reverse-sequential order by clicking the column heading.
Refer also to the “Using the Network Usage Report” on page27
6 for additional bandwidth information.
Perform these steps to view the most recent Ca
pacity Planning Report.
1. Navigate to the R
eports > Generated page.
2. Scroll to the bottom, and click Lat
est Capacity Planning Report to display Detail device capacity
information for all devices. The report provides multiple links to additional device configuration, folders, and
additional AWMS pages.
The following figures and Table 135 illustrate and describe the contents of the Capacit
y Planning Report.

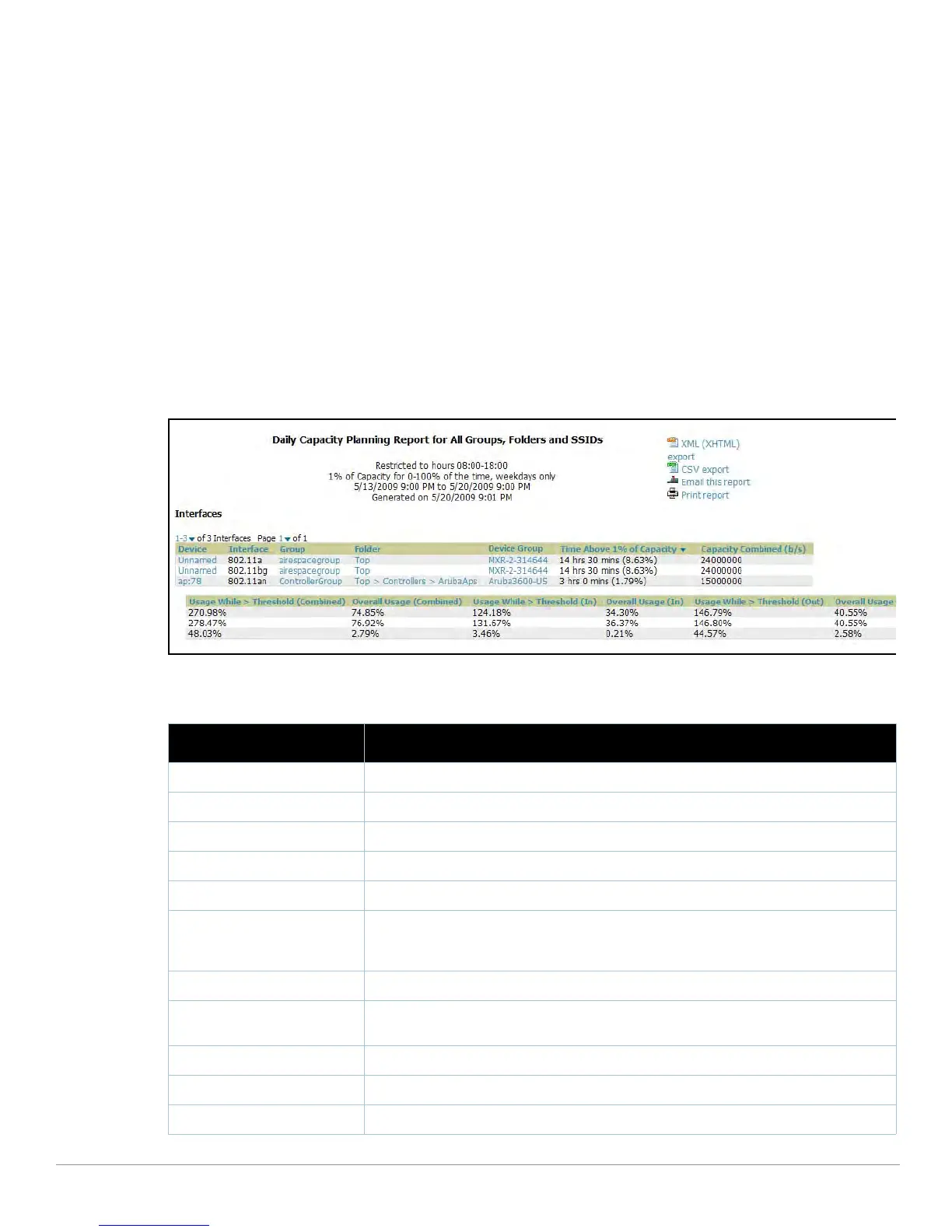

Figure 185 AWMS Capac
ity Planning Report Page (split view)
Table 135 C
apacity Planning Report Fields and Contents, Top Portion
Field Description
Device Displays the device type or name.
Interface Displays the type of 802.11 wireless
service supported by the device.
Group Displays the device group with which the device is associated
.
Folder Displays the folder with which the device is associated.
Controller Displays the controller with which a device operates.
Time Above 1% of Capacity Displays the time duration in which the device
has functioned above 0% of capacity. A low
percentage of use in this field may indicate that a device is under-used or poorly configured in
relation to its capacity, or in relation to user needs.
Capacity Combined (b/s) Displays the combined capacity in and out of th
e device, in bits-per-second.
Usage While > Threshold
(Combined)
Displays the time in which a device has functioned above
defined threshold capacity, both in
and out.
Overall Usage (Combined) Displays the overall usage of the device, both combined in
and out traffic.
Usage While > Threshold (in) Displays device usage that exceeds the define
d and incoming threshold capacity.
Overall Usage (In) Displays overall device usage for incoming data.
