Dell PowerConnect W AirWave 7.1 | User Guide Discovering, Adding, and Managing Devices | 167

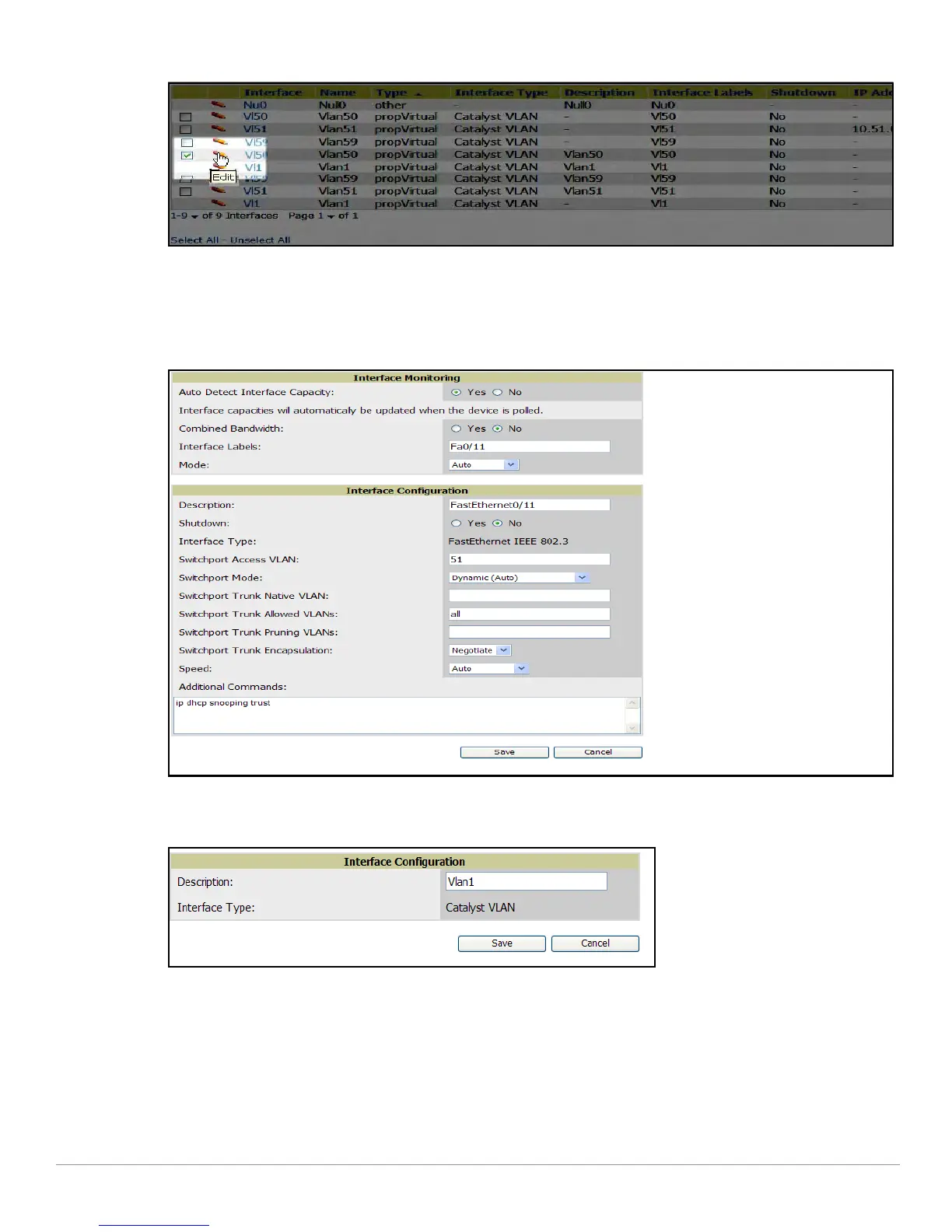

Figure 112 Editing Individual Interfaces Page
This takes you to the Inte
rfaces Monitoring and Configuration window, that has a slightly different appearance
depending on whether you are configuring a physical or virtual interface, as shown in Figure 113 and Figure 114.
Figure 113 Physical Inte
rfaces Monitoring and Configuration Window
Figure 114 Virtua
l Individual Interfaces Configuration Pane
To configure interfaces as a group, click the Edi
t Interfaces button above the Physical or Virtual Interfaces table
that includes the interfaces you want to edit collectively as shown in Figure 115.
