Connecting to Witness via serial
About this task
The Witness serial interface can be connected to with a USB to micro-USB cable.

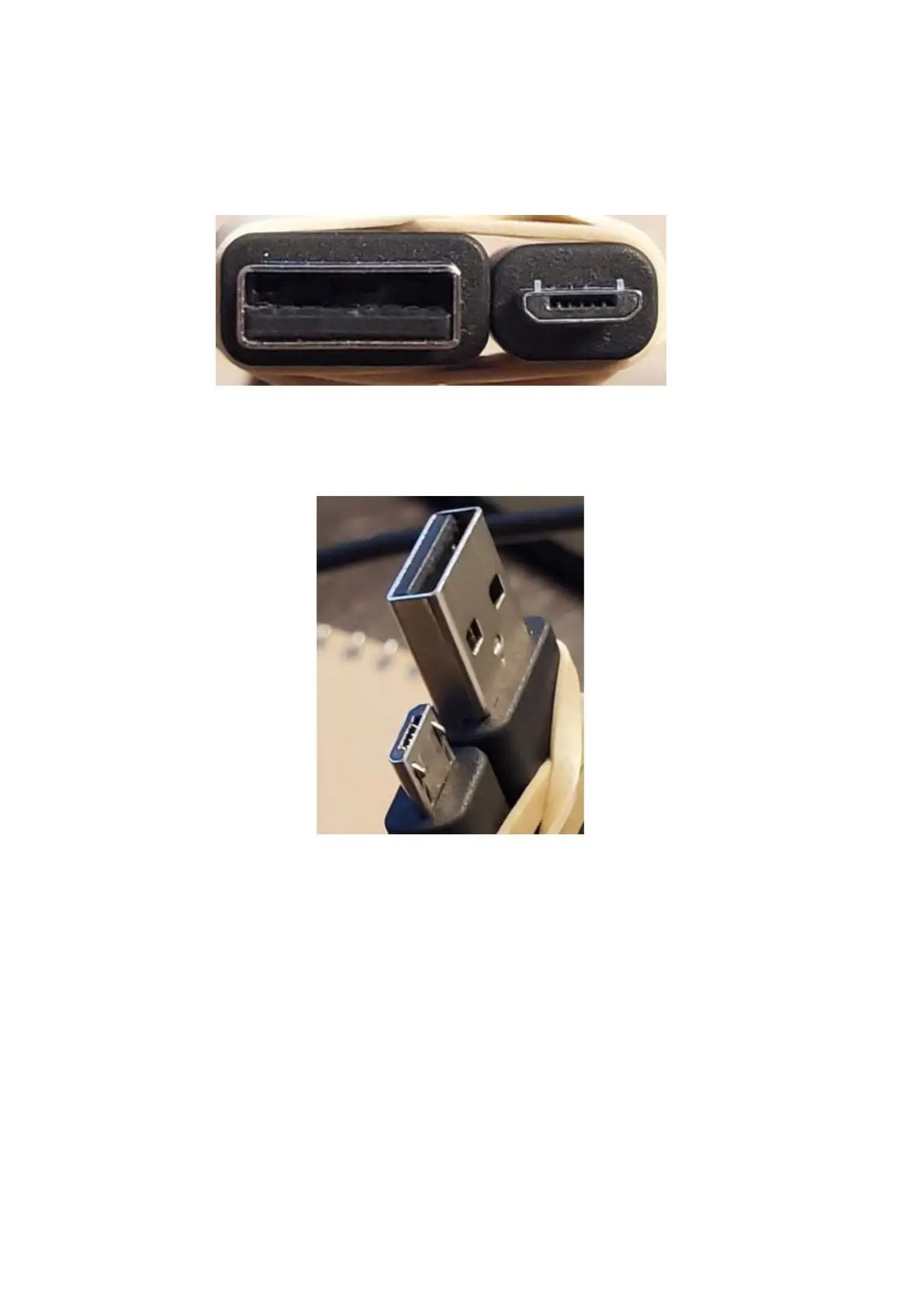

Figure 5. USB (left) to Micro-USB (right) cable
Figure 6. USB (top) to Micro-USB (bottom) cable
The micro-USB end of the cable plugs in to the micro-USB port on the front panel of the Witness. The USB end of the cable
plugs into a USB port on the external system that will be communicating with the Witness.
If connecting from a Windows OS, additional drivers are required to access the UART interface.
ā CP210x USB -> UART Bridge VCP Drivers: https://www.silabs.com/developers/usb-to-uart-bridge-vcp-drivers
ā Download the CP210x Universal Windows Driver directly: https://www.silabs.com/documents/public/software/
CP210x_Universal_Windows_Driver.zip
After driver installation, the Witness UART interface should appear to the connecting system once the Witness is powered on.
