Dell PowerSwitch S4048-ON User Manual

Two-post flush-mount configuration
CAUTION: Your switch is not NEBS Earthquake Z4-compliant if you use this installation method.
1. For this configuration, remove the latch castings from the front side of each ReadyRails assembly, item 1.
To remove the two screws from each front flange ear on the switch side of the rail and remove each casting, use a Torx
screwdriver. Retain the castings for future rack requirements. It is not necessary to remove the rear flange castings.

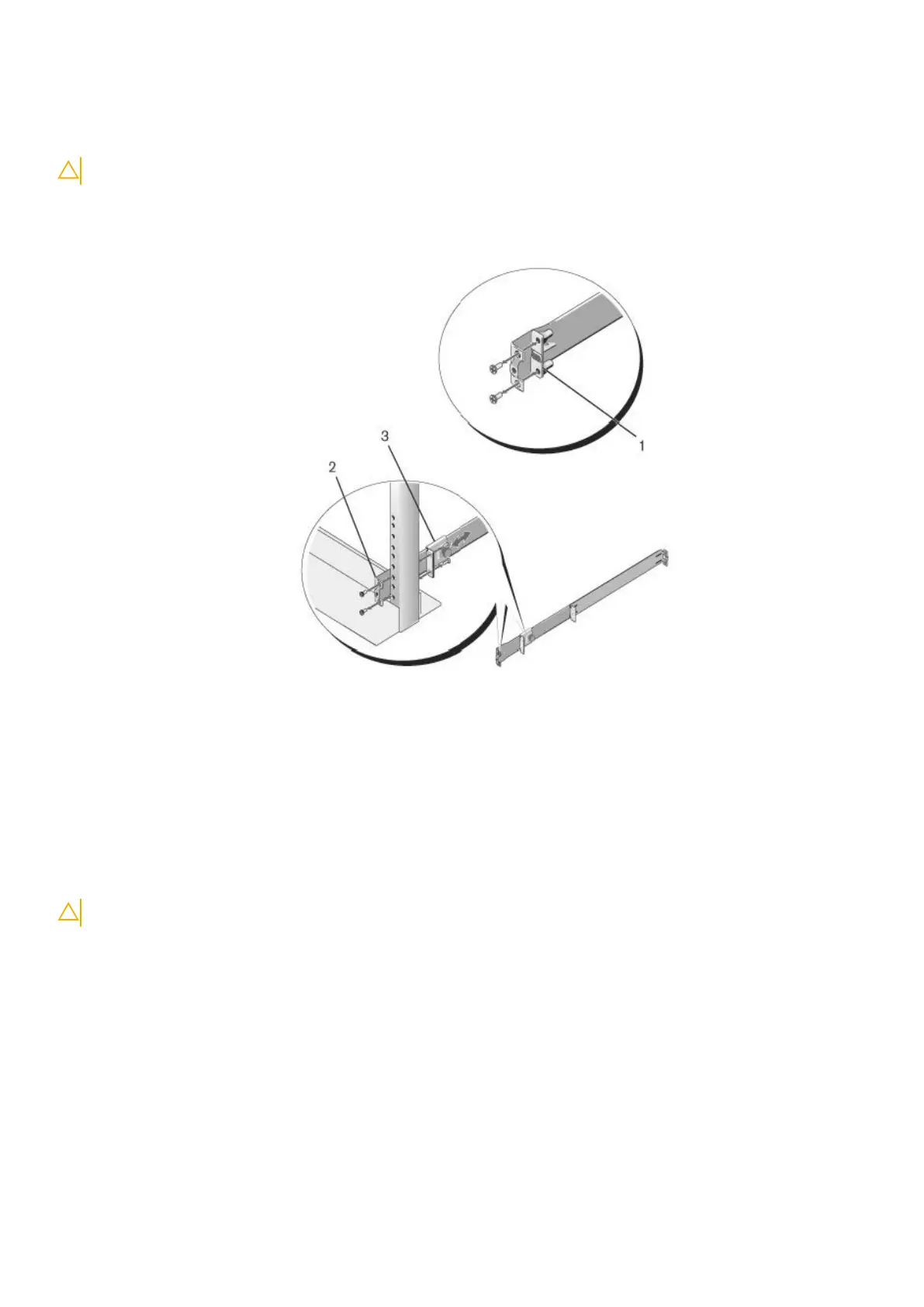

Figure 7. Two-post flush-mount configuration
2. Attach one rail to the front post flange with two user-supplied screws, item 2.
3. Slide the plunger bracket forward against the vertical post and secure the plunger bracket to the post flange with two
user-supplied screws. See item 3.
4. Repeat this step for the second rail.
Two-post center-mount configuration
CAUTION: Your switch is not NEBS Earthquake Z4-compliant if you use this installation method.
1. Slide the plunger bracket rearward until it clicks into place and secure the bracket to the front post flange with two
user-supplied screws, item 1.
18
S4048–ON installation

Dell PowerSwitch S4048-ON Specifications

General

Switching Capacity	1.44 Tbps
Airflow	Front-to-back or back-to-front
Manageable	Yes
Total Number of Network Ports	54
Uplink Port	6 x 40GbE QSFP+
Number of 40 Gigabit Ethernet Ports	6
Number of 10 Gigabit Ethernet Ports	48
Media Type Supported	Optical Fiber, Twisted Pair
Ethernet Technology	10 Gigabit Ethernet, 40 Gigabit Ethernet
Layer Supported	Layer 2, Layer 3
Form Factor	Rack-mountable
Operating Temperature	32 °F to 104 °F (0 °C to 40 °C)
Power Supply	Dual, hot-swappable
Dimensions	1.7 inches
Product Type	Layer 3 Switch
Port/Expansion Slot Details	48 x 10GbE SFP+, 6 x 40GbE QSFP+
Network Technology	40GBase-X
Input Voltage	100-240 VAC
Height	1.7 inches
Width	17.3 inches
Ports	48 x 10GbE, 6 x 40GbE
Weight	24.5 lbs
