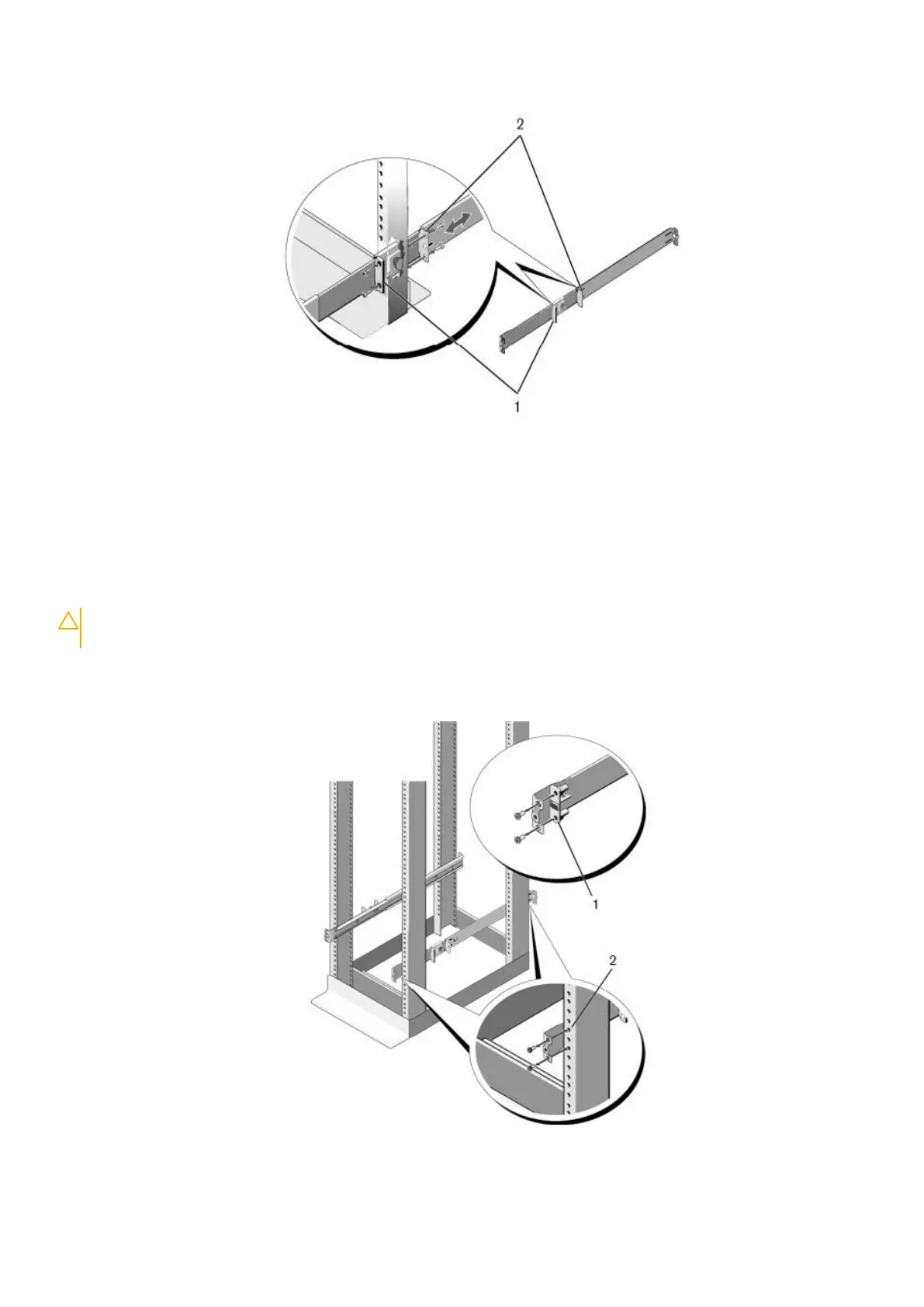

Figure 8. Two-post center-mount configuration
2. Slide the back bracket towards the post and secure it to the post flange with two user-supplied screws, item 2.
3. Repeat this step for the second rail.
Four-post threaded configuration
CAUTION:
To be NEBS Earthquake Z4-compliant, you must remove the tool-less latch castings that are
described in Step 1.
1. For this configuration, remove the latch castings from each end of the ReadyRails assemblies.
To remove the two screws from each flange ear and remove each casting, use a Torx driver, item 1. Retain the castings for
future rack requirements.
Figure 9. Four-post threaded configuration
S4048ON installation
19
