2. For each rail, attach the front and rear flanges to the post flanges with two user-supplied screws at each end, item 2.
S4048-ON installation
You can mount the switch in the 1U front-rack or 1U flush and center two-post configurations. The following is an example of a
front-rack configuration:
For the 1U flush and center two-post configurations, slide the switch into the rails in the same manner as the four-post
configurations.
1U front-rack installation
You must configure the rails that are attached to the switch.
1. Attach the inner chassis members switch rails to the S4048–ON switch.
Item 3 shows the details for the front standoff with the locking tab.

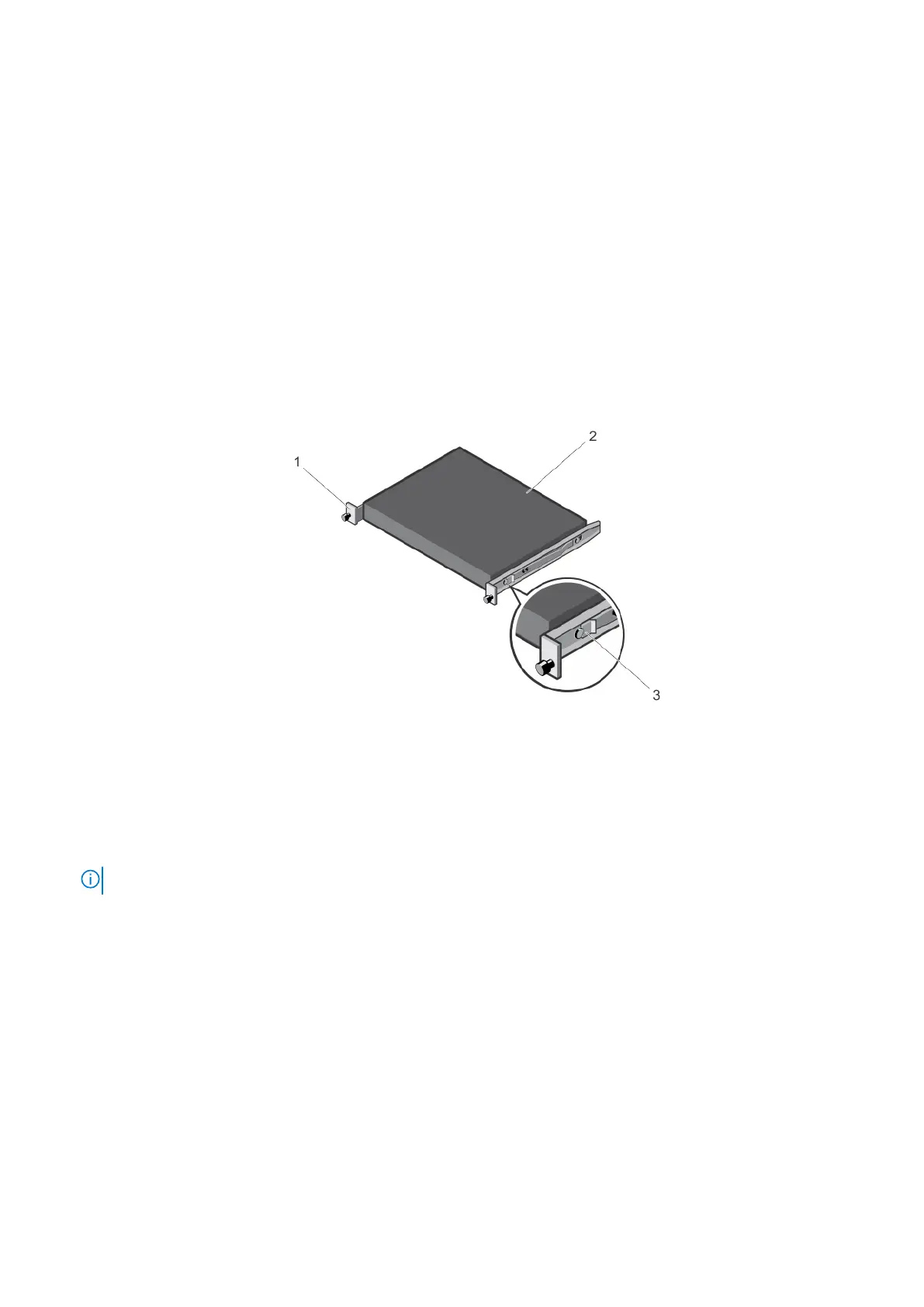

Figure 10. Switch rails attachment
2. After you have installed both switch rails, line them up on the previously mounted Ready-Rails and slide the switch in until it
is flush with the front of the rack.
About 3-inches before you fully insert your switch, the rail locking feature engages to keep the switch from inadvertently
sliding out of the rack and falling.
NOTE: Do not the use the mounted Ready-Rails as a shelf or a workplace.
20 S4048–ON installation

Dell PowerSwitch S4048-ON Specifications

General

Switching Capacity	1.44 Tbps
Airflow	Front-to-back or back-to-front
Manageable	Yes
Total Number of Network Ports	54
Uplink Port	6 x 40GbE QSFP+
Number of 40 Gigabit Ethernet Ports	6
Number of 10 Gigabit Ethernet Ports	48
Media Type Supported	Optical Fiber, Twisted Pair
Ethernet Technology	10 Gigabit Ethernet, 40 Gigabit Ethernet
Layer Supported	Layer 2, Layer 3
Form Factor	Rack-mountable
Operating Temperature	32 °F to 104 °F (0 °C to 40 °C)
Power Supply	Dual, hot-swappable
Dimensions	1.7 inches
Product Type	Layer 3 Switch
Port/Expansion Slot Details	48 x 10GbE SFP+, 6 x 40GbE QSFP+
Network Technology	40GBase-X
Input Voltage	100-240 VAC
Height	1.7 inches
Width	17.3 inches
Ports	48 x 10GbE, 6 x 40GbE
Weight	24.5 lbs
