The S4048ON switch
The following sections describe the Dell S4048ON switch:
Topics:
Introduction
Features
Physical dimensions
Switch status
LED display
Prerequisites
S4048ON configurations
Introduction
S4048-ON is a networking switch for campus aggregation and core switching 10 Gbps servers and 40 Gbps optical uplinks to
the 40 Gbps switching fabric in the core.
The S4048ON has:
Forty-eight ports of 10G SFP+ ports for a 1/10 Gbps transceiver
Six 40 Gbps fixed QSFP+ optical ports for a 40 Gbps transceiver
Serial RS 232 port, RJ45, and Micro-USB
RJ45 management port
The S4048ON I/O side includes:
Forty-eight fixed SFP+ and six fixed QSFP+ ports
Management port
USB 2.0 port
Serial RS 232 port, RJ45, and Micro-USB
LED display for the switch, fan, and power status

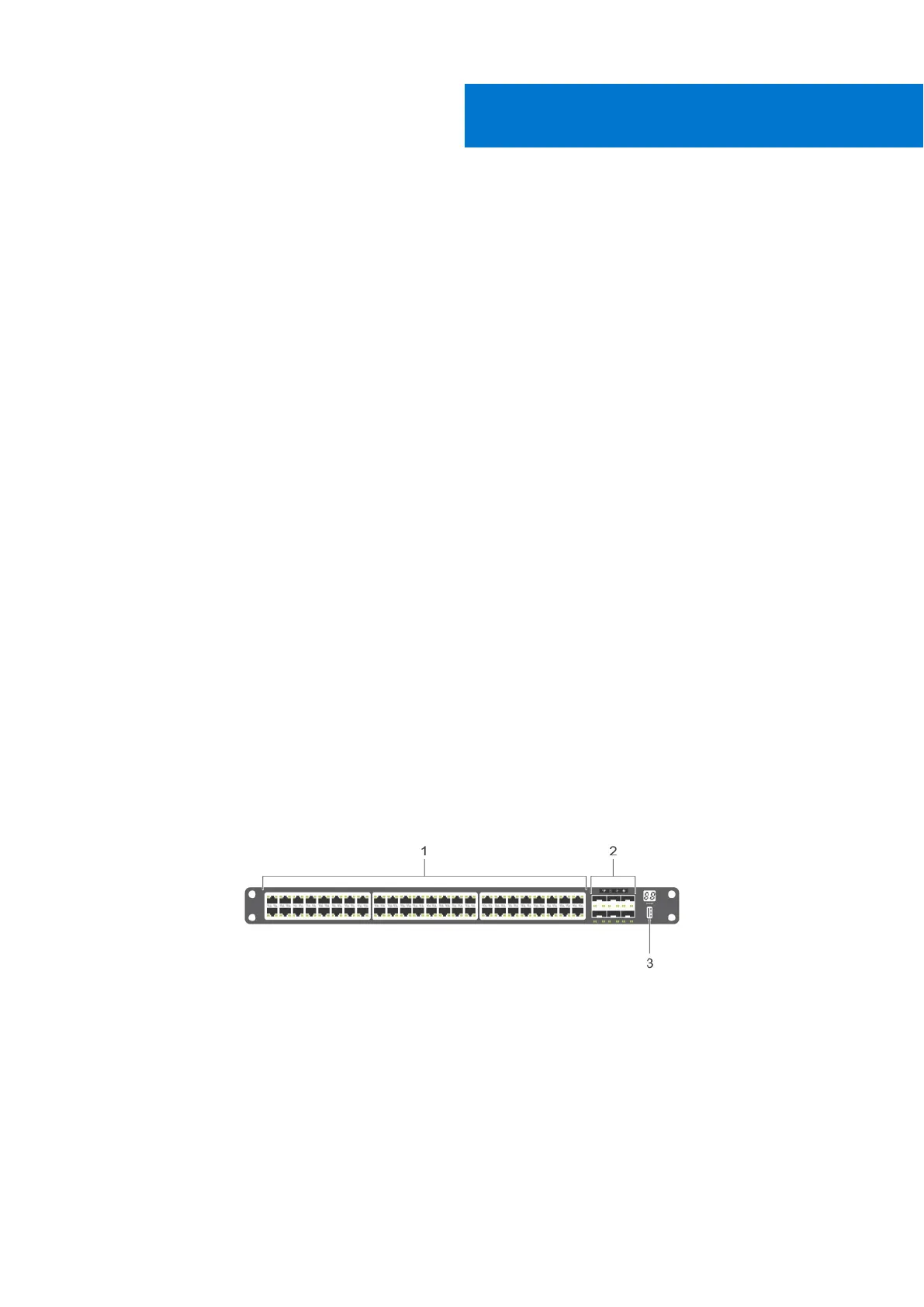

Figure 2. S4048ON I/O-side view
1. SFP+ ports
2. QSFP+ ports
3. USB Type-A storage port
4. Micro-USB console port
