Steps

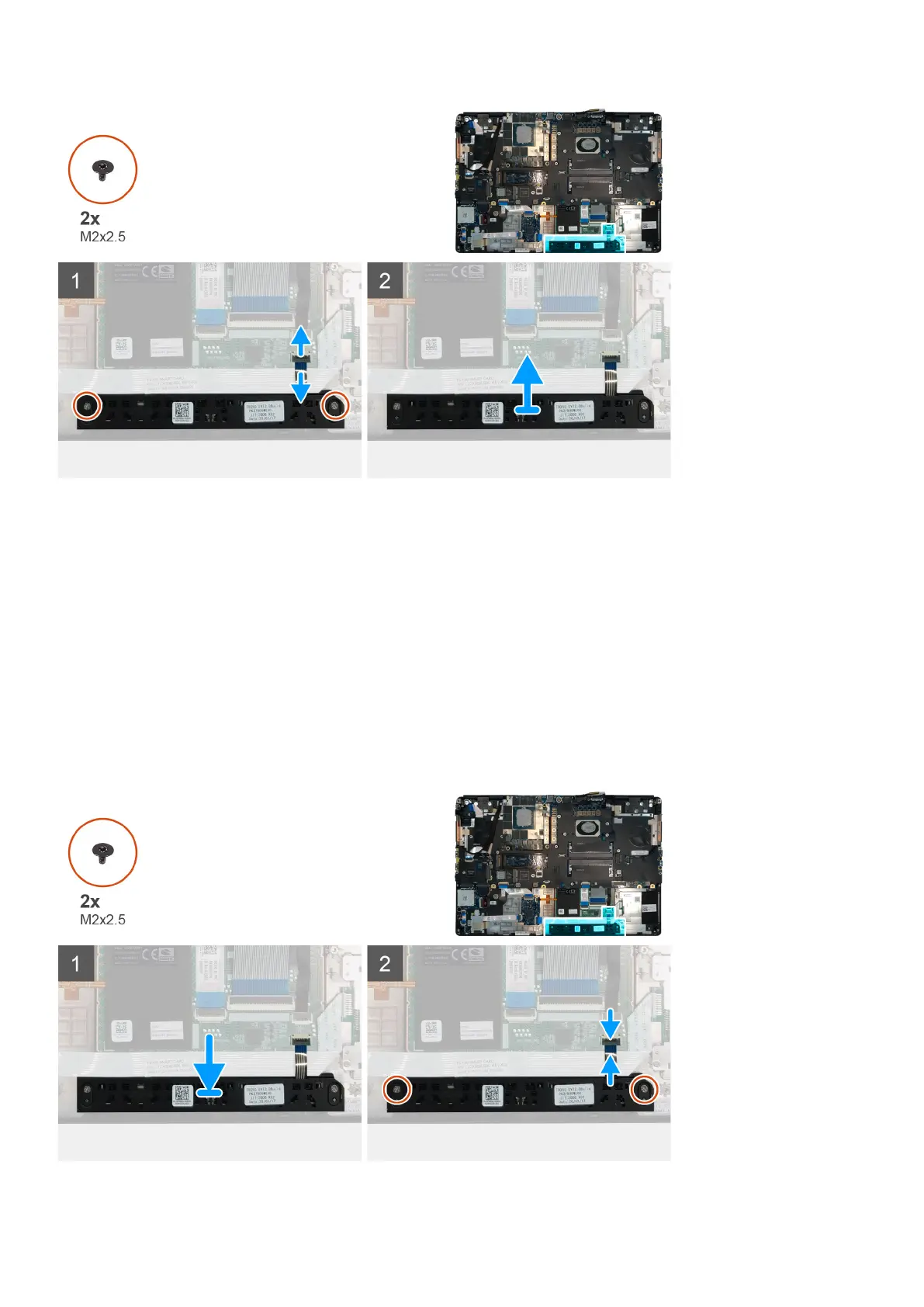

1. Disconnect the touchpad buttons cable from the connector on the touchpad.
2. Remove the two (M2x2.5) screws that secure the touchpad buttons to the palmrest.
3. Remove the touchpad buttons from the palmrest.
Installing the Touchpad buttons
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the touchpad buttons and provides a visual representation of the installation procedure.
54
Disassembly and reassembly
