Middle cap
Removing the middle cap
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the SSD door.
4. Remove the secondary M.2 SSD.
5. Remove the base cover.
6. Remove the battery.
7. Remove the primary M.2 SSD.
8. Remove the SIM card.
9. Remove the secondary memory.
10. Remove the WWAN card.
11. Remove the WLAN card.
12. Remove the keyboard lattice.
13. Remove the keyboard.
14. Remove the primary memory.
15. Remove the heat-sink assembly.
16. Remove the inner frame.
17. Remove the GPU power cable.
18. Remove the GPU card.
19. Remove the system board.
About this task

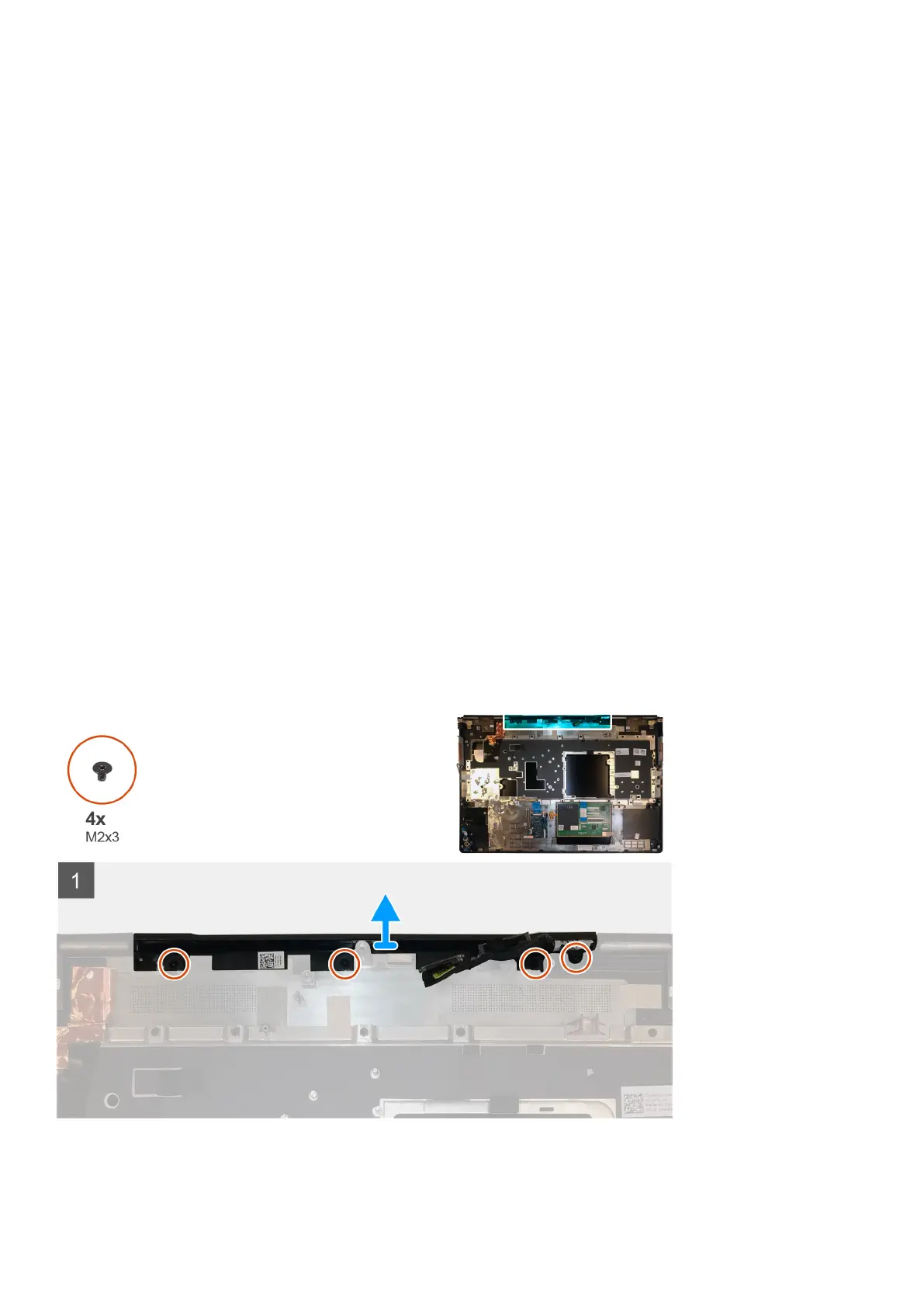

The figure indicates the location of the speaker and provides a visual representation of the removal procedure. Images to be uploaded in
the next review cycle.
Steps
1. Remove the four (M2x3) screws that secures the middle cap in place.
Disassembly and reassembly
71
