Steps
1. Remove the two (M2x3) screws that secure the power button assembly with fingerprint reader in its slot on the computer.
2. Remove the power button assembly with fingerprint reader from the computer.
Installing the power button assembly with fingerprint
reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

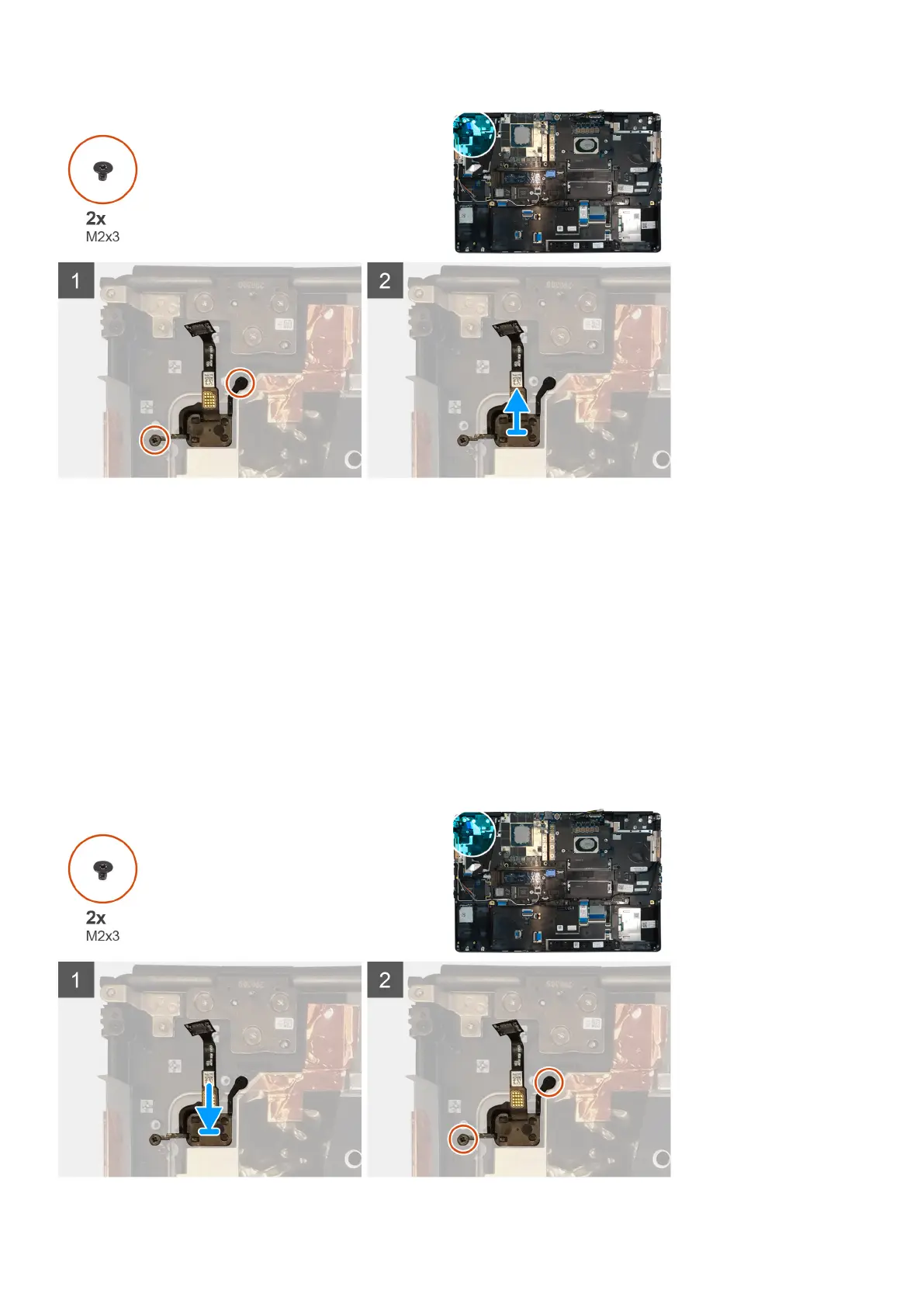

The figure indicates the location of the power button and provides a visual representation of the installation procedure.
Disassembly and reassembly
59
