Dell S4128F-ON Series User Manual

Luggage tag
The S4100–ON Series (S4128F-ON and S4148F-ON) switch has a pull-out tag, known as a luggage tag, on the PSU-side of the switch.
The front of the luggage tag includes switch ID information. The back of the luggage tag includes a QRL that takes you to a How-To site
where you watch videos about racking the switch, replacing components, conguring port channels, and so on.

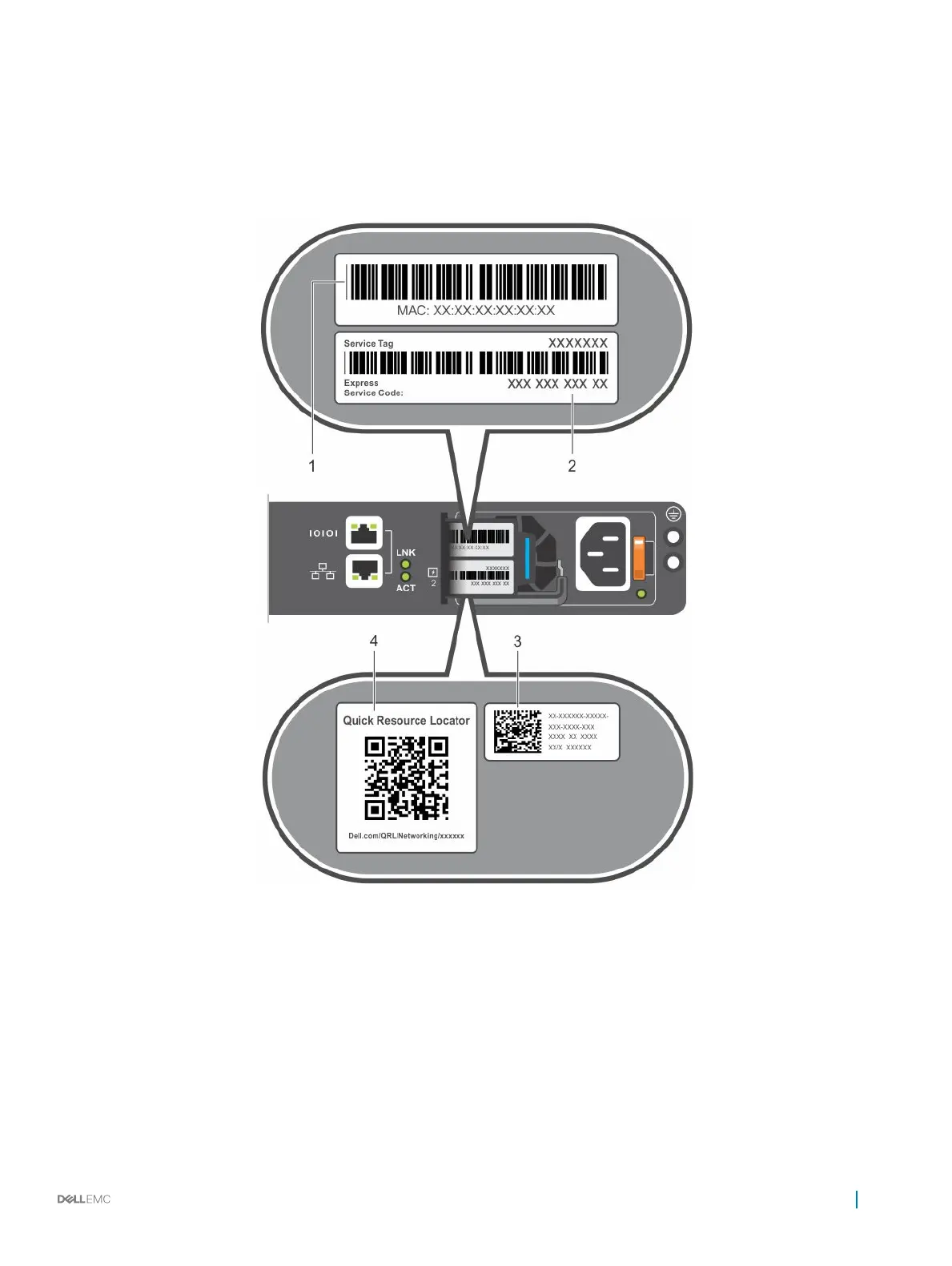

Figure 8. S4100–ON Series luggage tag
1
Front: MAC address 2 Front: Service tag and Express service code
3 Back: Quick resource locator (QRL) 4 Back: QRL
S4100–ON Series switch 15

Dell S4128F-ON Series Specifications

General

Rack Units	1U
Airflow	Front-to-back or back-to-front
Manageable	Yes
Jumbo Frame Support	Yes
Jumbo Frame Size	9216 bytes
Model	S4128F-ON
Switch Type	Layer 3
Form Factor	Rack-mountable
Ports	28 x 10GbE SFP+
Power Supply	2
Product Type	Ethernet Switch
MAC Address Table Size	128000
Input Voltage	100 V AC to 240 V AC
Power Consumption Operational	200 W
Product Series	S-Series
Forwarding Capacity	1.072 Bpps
Operating System	Open Networking (ON)
