Dell S4128F-ON Series User Manual

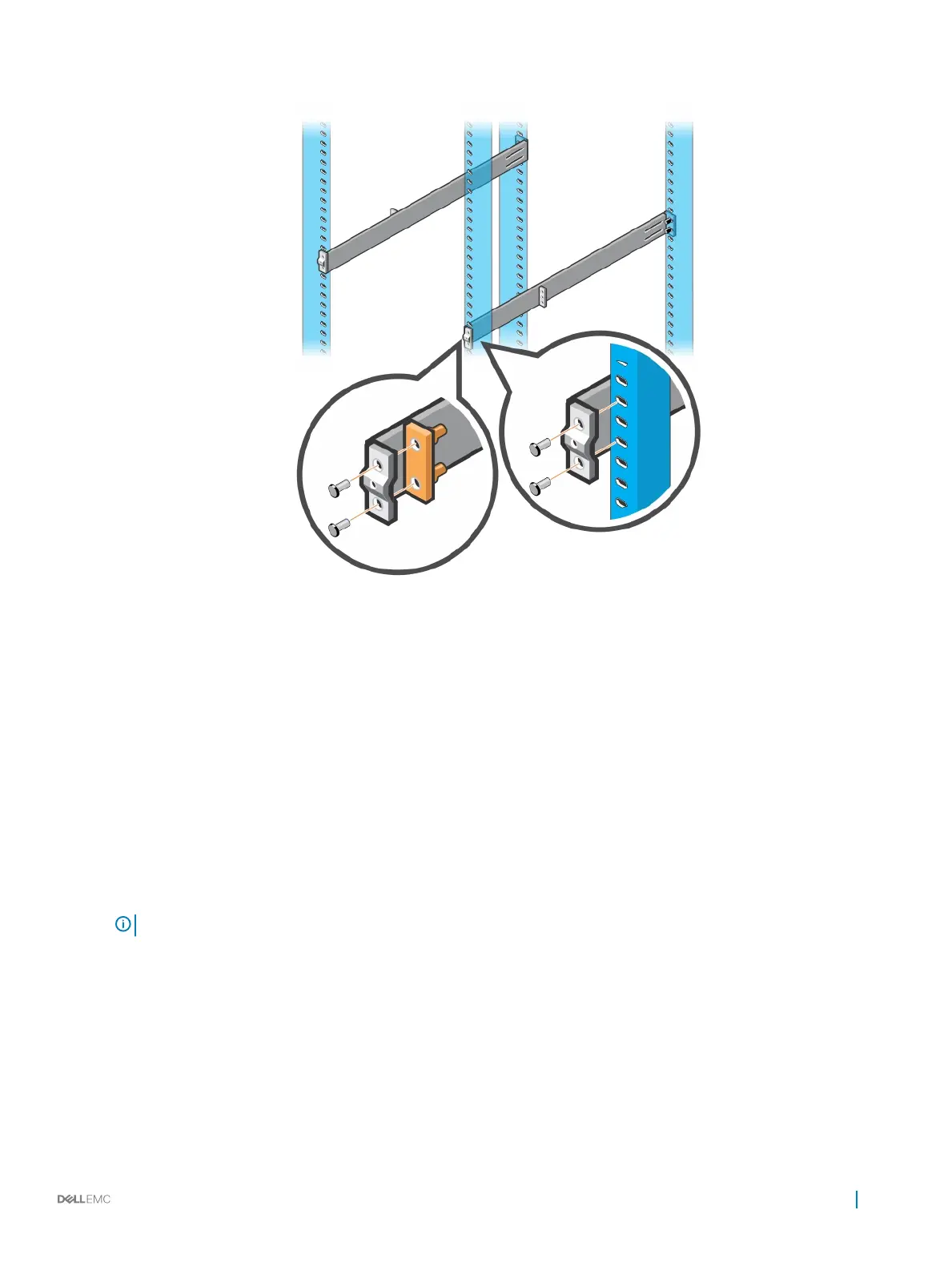

Figure 13. Four-post threaded installation
2 For each rail, attach the front and back anges to the post anges with two user-supplied screws at each end.
S4100-ON Series installation
You can mount the switch in the 1U front-rack two-post, ush or center conguration, or a four-post conguration. The following is an
example of a front-rack conguration:
For the 1U two-post congurations, slide the switch into the rails in the same manner as the four-post congurations.
1U front-rack installation
Congure the rails that are attached to the switch.
1
NOTE
: For more information, see the installation instruction labels on the rail.
Attach the inner switch rails to the S4100F–ON Series (S4128F-ON and S4148F-ON) switch.
Line up the rail with the mounting heads and attach the rail to the chassis. Slide the rail back until it locks into place. The following
shows the detail of the front stando with the locking tab:
S4100–ON Series installation
25

Dell S4128F-ON Series Specifications

General

Rack Units	1U
Airflow	Front-to-back or back-to-front
Manageable	Yes
Jumbo Frame Support	Yes
Jumbo Frame Size	9216 bytes
Model	S4128F-ON
Switch Type	Layer 3
Form Factor	Rack-mountable
Ports	28 x 10GbE SFP+
Power Supply	2
Product Type	Ethernet Switch
MAC Address Table Size	128000
Input Voltage	100 V AC to 240 V AC
Power Consumption Operational	200 W
Product Series	S-Series
Forwarding Capacity	1.072 Bpps
Operating System	Open Networking (ON)
