About this task

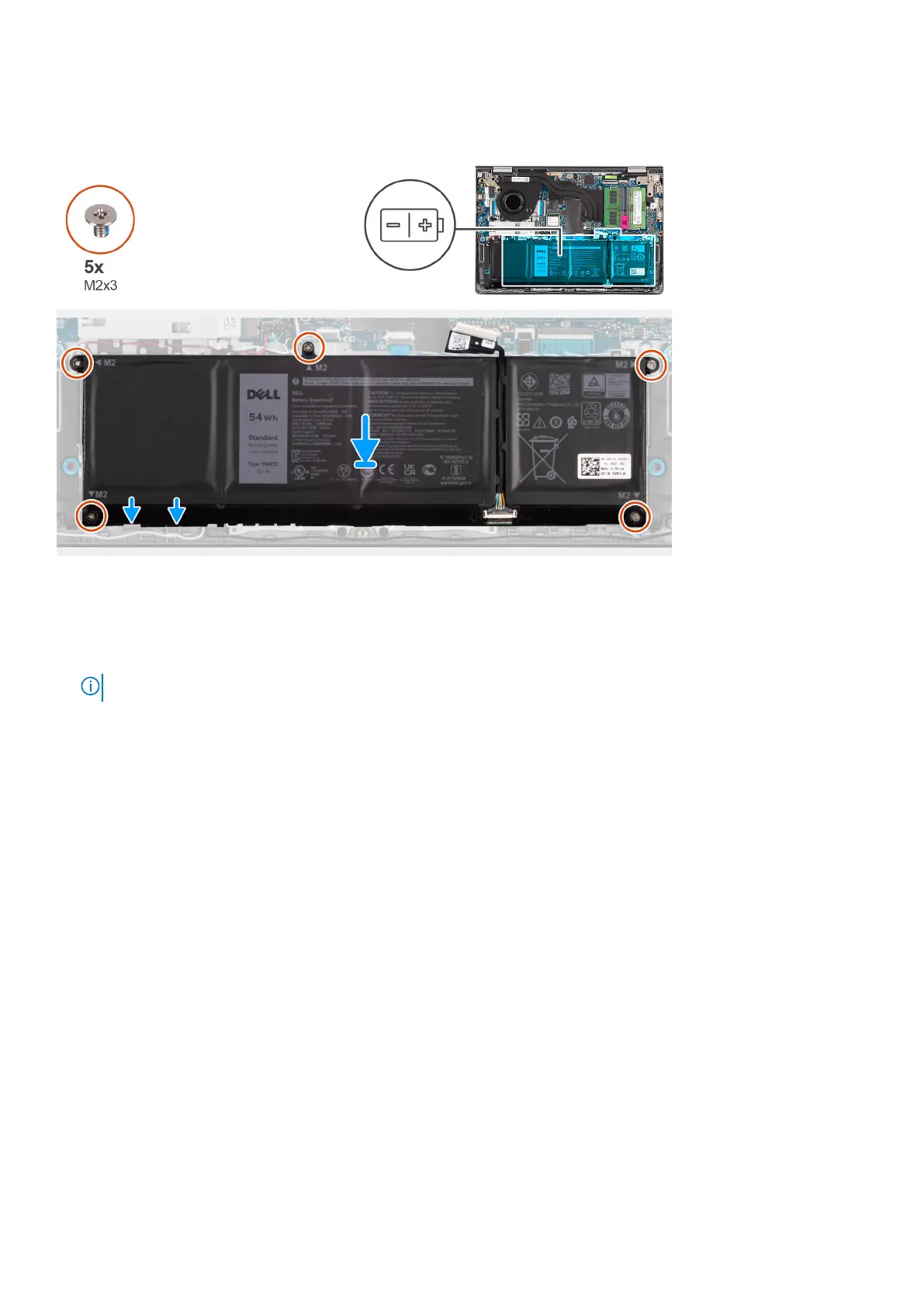

The following image indicates the location of the 4-cell battery and provides a visual representation of the installation procedure.
Steps
1. Place the battery on the palm-rest and keyboard assembly.
2. Align the screw holes on the battery to the screw holes on the palm-rest and keyboard assembly.
3. Replace the five (M2x3) screws that secure the battery to the palm-rest and keyboard assembly.
NOTE: A 3-cell battery has three (M2x3) screws that secure the battery to the palm-rest and keyboard assembly.
4. Connect the battery cable to the connector on the system board.
Next steps
1. Install the base cover.
2. Install the SD card.
3. Follow the procedure in After working inside your computer.
Memory modules
Removing the memory modules
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
About this task
The following images indicate the location of the memory modules and provide a visual representation of the removal procedure.
22
Removing and installing components
