Steps

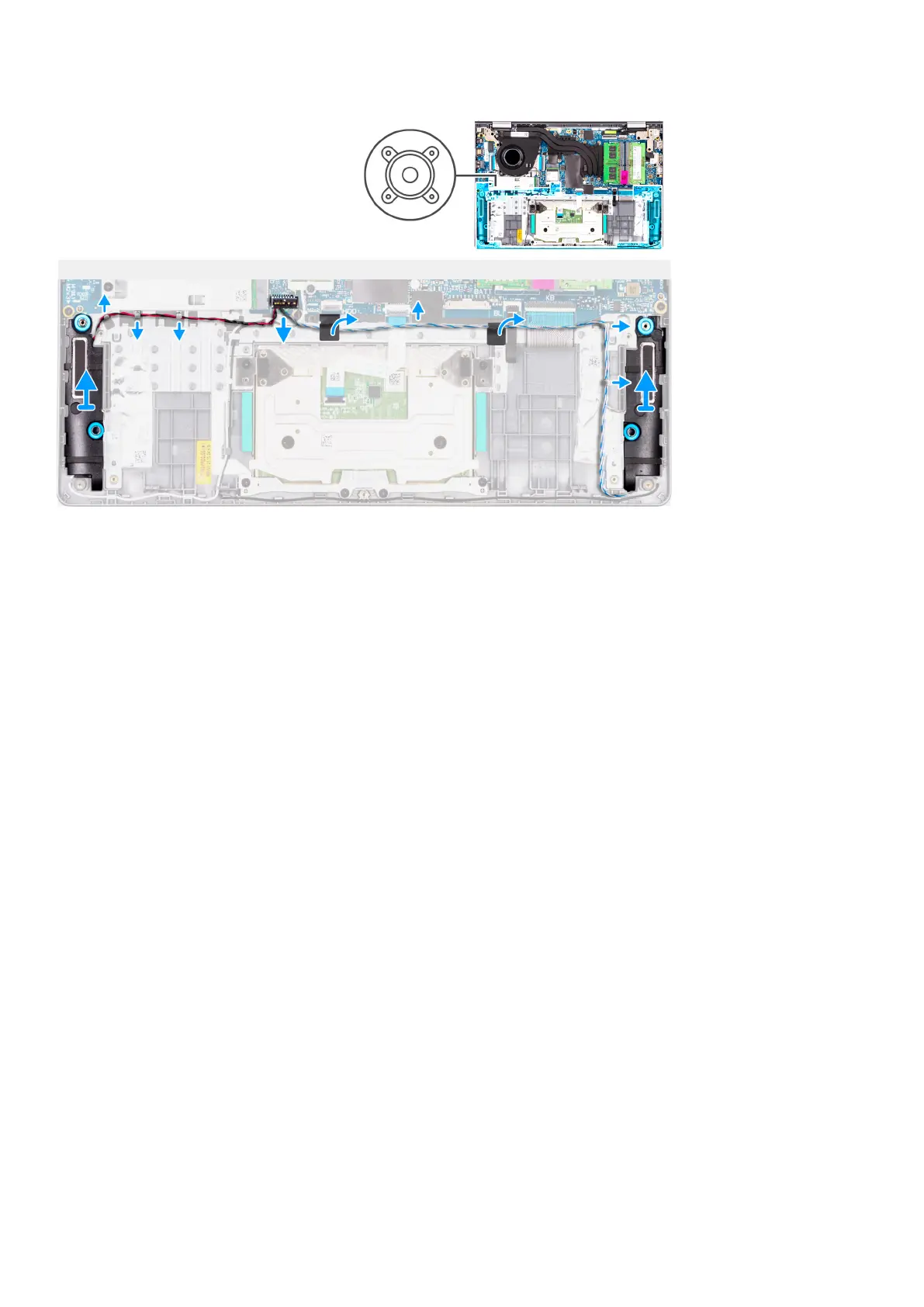

1. Peel the adhesive tape that secures the speaker cable.
2. Disconnect the speaker cable from the system board.
3. Unroute the speaker cable from the routing guides on the palm-rest and keyboard assembly.
4. Lift the speakers along with its cable from the palm-rest and keyboard assembly.
Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the speakers and provide a visual representation of the installation procedure.
Removing and installing components
41
