Steps

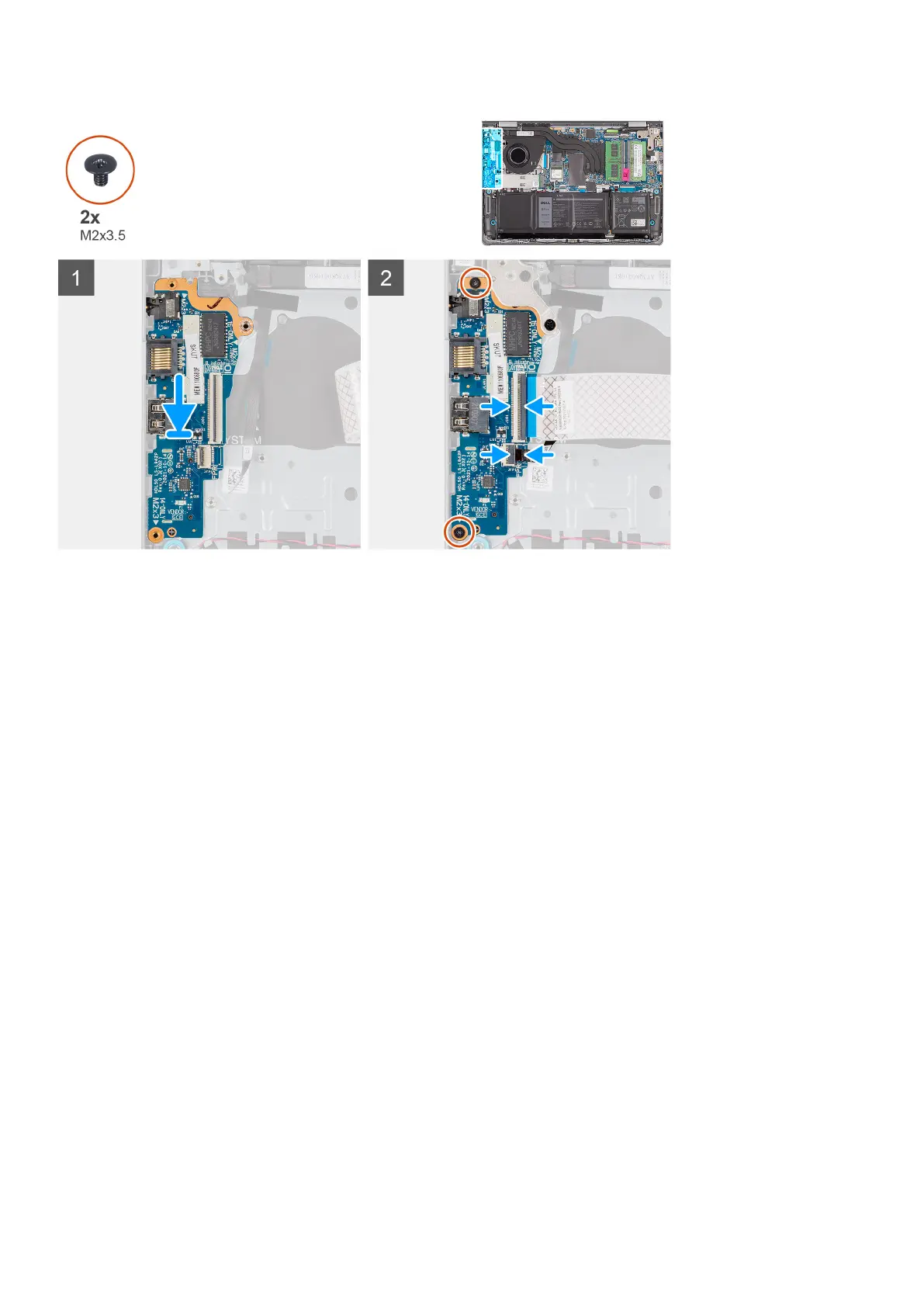

1. Place the I/O board on the palm-rest and keyboard assembly.
2. Align the screw holes on the I/O board to the screw holes on the palm-rest and keyboard assembly.
3. Connect the fingerprint-reader board cable to the connector on the I/O board and close the latch (if applicable).
4. Connect the I/O board power cable to the connector on the I/O board and close the latch.
5. Close the hinge and replace the two (M2x3.5) screws that secure the display hinge to the palm-rest and keyboard assembly.
Next steps
1. Install the SSD.
2. Install the fan.
3. Install the base cover.
4. Install the SD card.
5. Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
About this task
The following images indicate the location of the speakers and provide a visual representation of the removal procedure.
