Display cover and antenna assembly
Replacement of the display cover and antenna assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the wireless card.
5. Remove the display assembly.
6. Remove the display hinge caps.
7. Remove the display bezel.
8. Remove the display hinges.
9. Remove the display panel.
10. Remove the eDP cable (plastic) or (aluminum), whichever applicable.
About this task

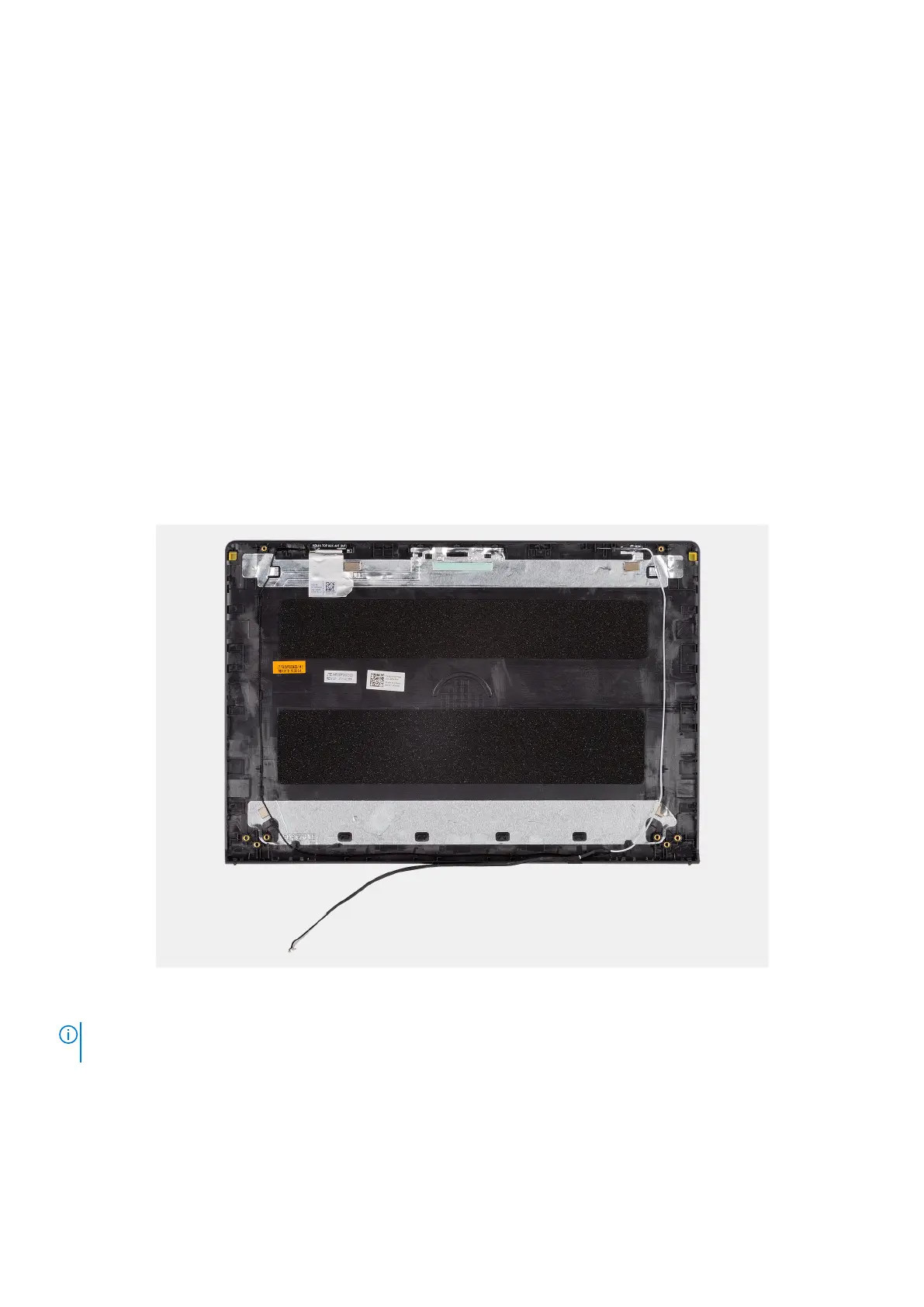

The following image indicates the location of the display cover and antenna assembly and provides a visual representation of the
removal procedure.
Figure 1. Display cover (plastic chassis)
NOTE:
The display cover and antenna assembly cannot be further disassembled. If the WLAN antennas are malfunctioning
and needs replacement, replace the entire display cover and antenna assembly.
74 Removing and installing components
