Steps

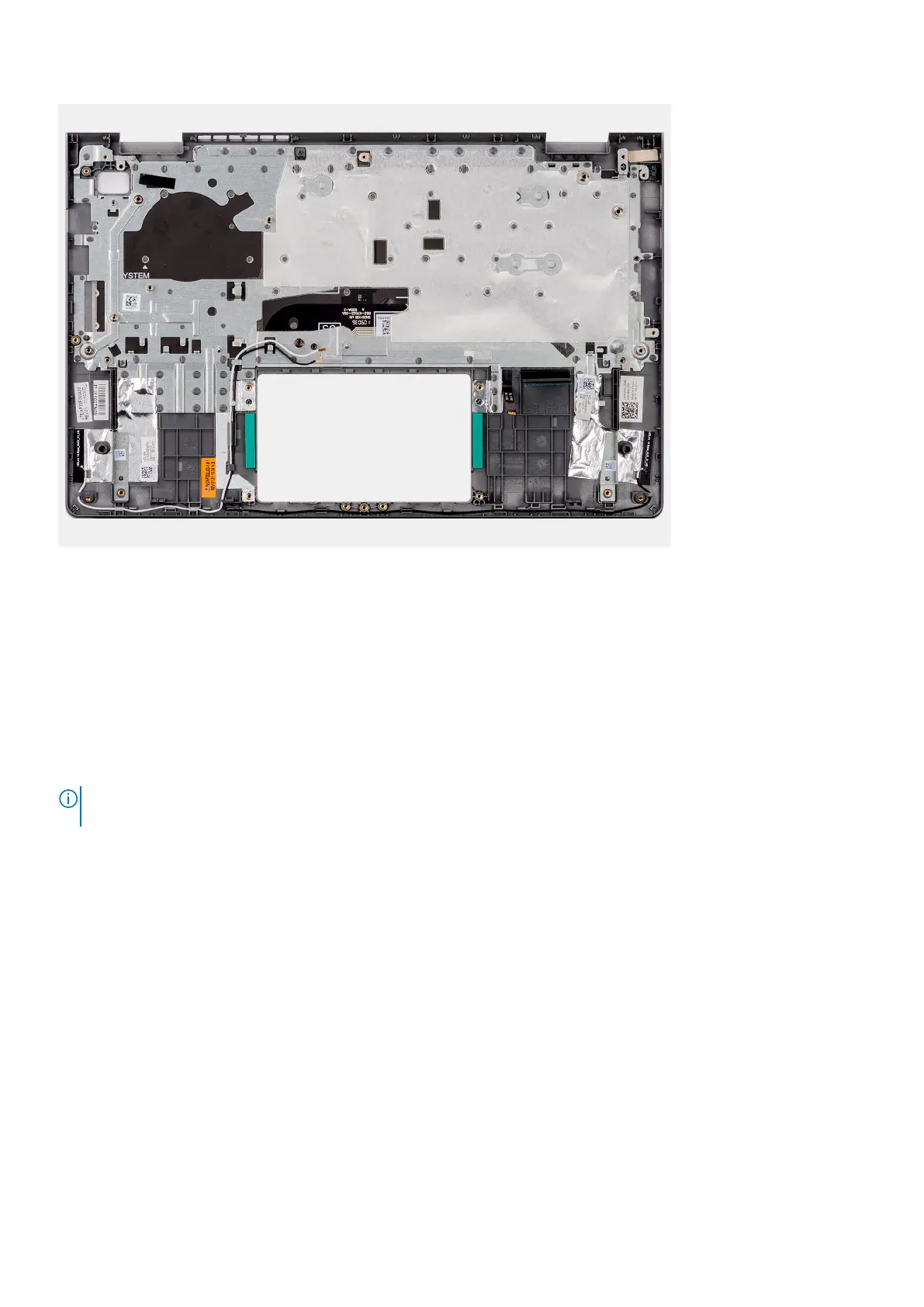

After performing the pre-requisites, you are left with the palm-rest and keyboard assembly.
Installing the palmrest and keyboard assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
Steps
NOTE:
For systems with a plastic chassis, both the left and right RF metal brackets MUST be transferred to the
replacement palm-rest assembly.
Place the palm-rest and keyboard assembly on a flat and clean surface and perform the post-requisites to install the palm-rest
and keyboard assembly.
Next steps
1. Install the system board.
2. Install the power button.
3. Install the power-adapter port.
4. Install the display assembly.
5. Install the touchpad.
6. Install the speakers.
7. Install the I/O board.
8. Install the I/O board FFC.
9. Install the heat sink.
10. Install the fan.
11. Install the wireless card.
12. Install the SSD.
13. Install the memory modules.
14. Install the battery.
Removing and installing components
85
