Steps

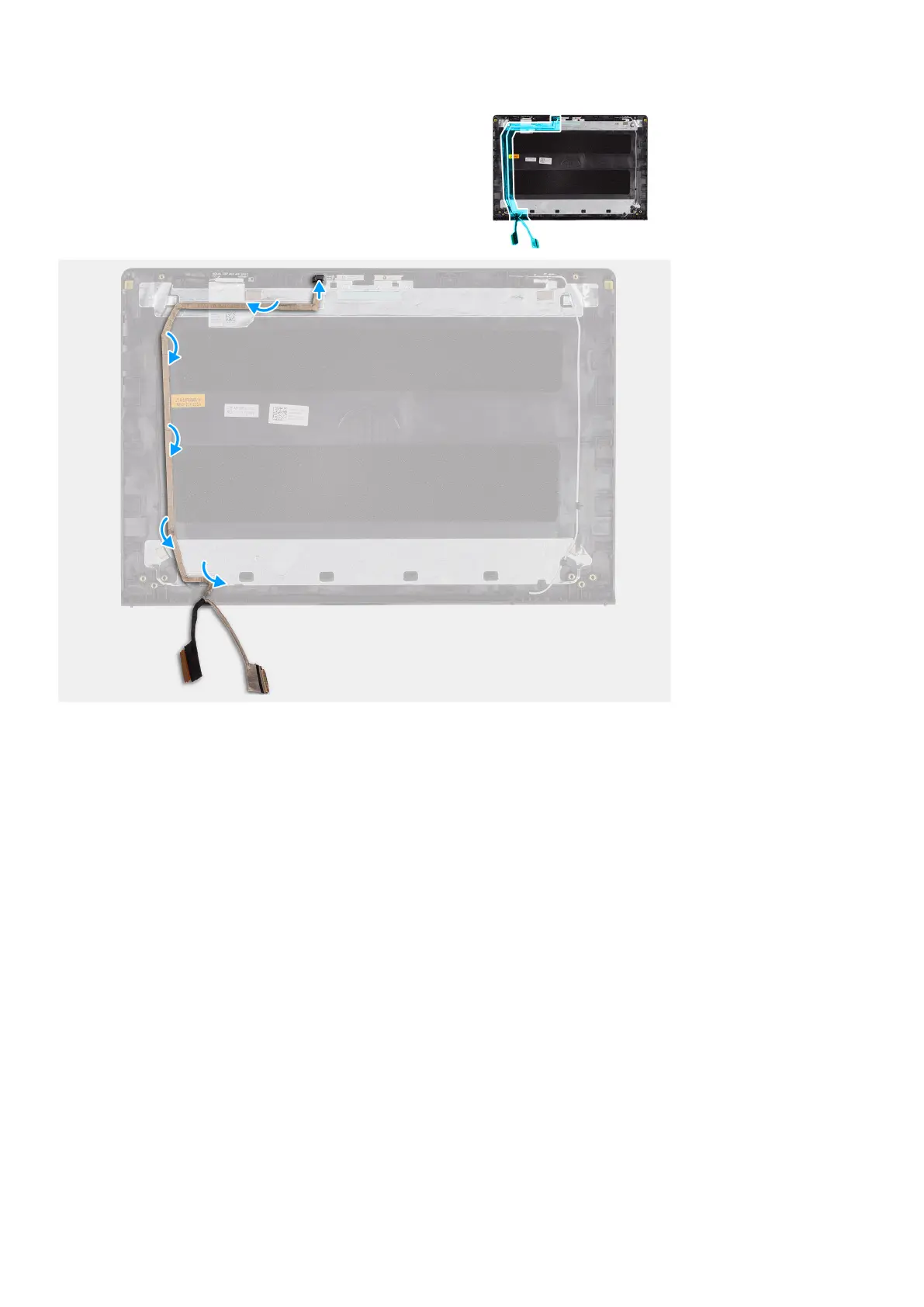

1. Adhere the tape to securing the eDP cable to the display back cover.
2. Connect the eDP cable to the camera.
Next steps
1. Install the display panel.
2. Install the hinges.
3. Install the display bezel.
4. Install the hinge caps.
5. Install the display assembly.
6. Install the wireless card.
7. Install the SSD.
8. Install the memory modules.
9. Install the base cover.
10. Install the SD card.
11. Follow the procedure in After working inside your computer.
Removing the eDP cable (Aluminum)
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
Removing and installing components
67
