Steps

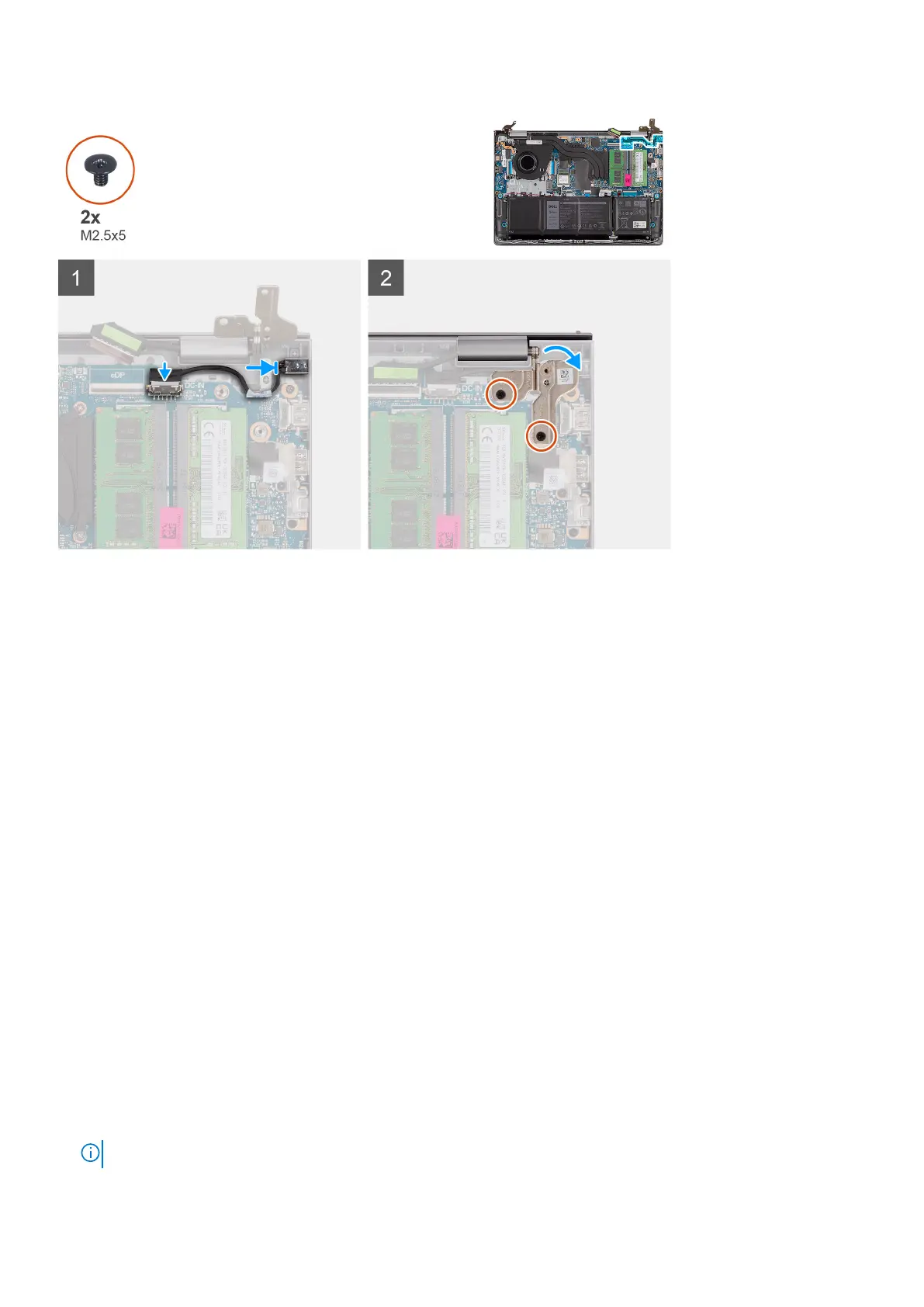

1. Using the alignment post, place the power-adapter port into its slot on the palm-rest and keyboard assembly.
2. Connect the power-adapter port cable to the connector on the system board.
3. Fold the right hinge down and install the two (M2.5x5) screws to secure it to the palm-rest and keyboard assembly.
Next steps
1. Install the wireless card.
2. Install the SSD.
3. Install the base cover.
4. Install the SD card.
5. Follow the procedure in After working inside your computer.
System board
Removing the system board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery .
5. Remove the memory modules.
6. Remove the SSD.
7. Remove the wireless card.
8. Remove the fan.
9. Remove the heat sink.
NOTE: The system board can be removed along with the heat sink.
10. Remove the display assembly.
Removing and installing components
79
