About this task

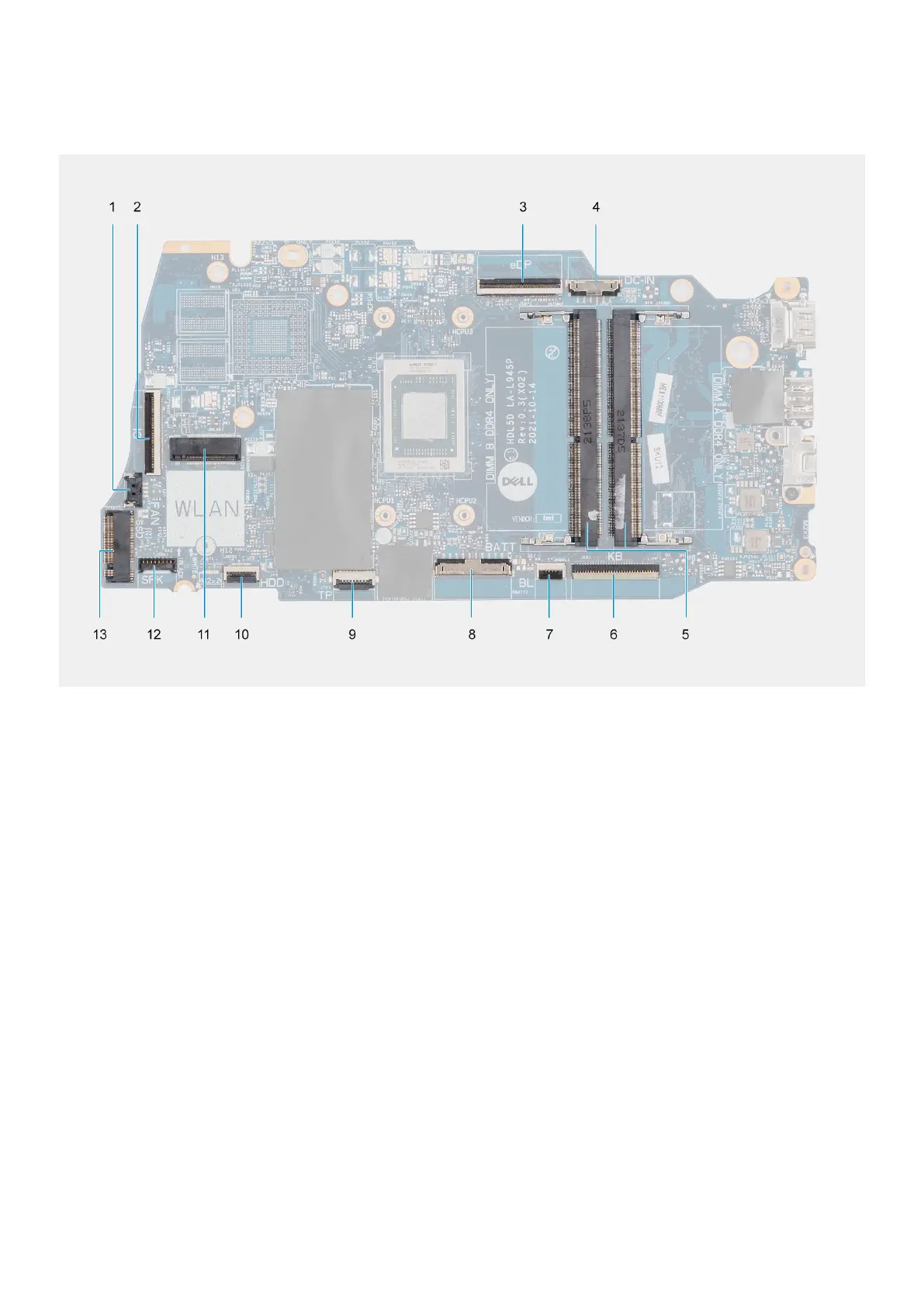

The following image indicates the connectors on your system board:
1. Fan connector 2. I/O board FFC connector
3. eDP connector 4. DC-in port connector
5. Memory modules 6. Keyboard FFC connector
7. Keyboard-backlight FFC connector 8. Battery connector
9. Touchpad FFC connector 10. Hard drive FFC connector
11. Wireless connector 12. Speaker cable connector
13. Solid-state drive connector
The following images indicate the location of the system board and provide a visual representation of the removal procedure.
80
Removing and installing components
