Steps

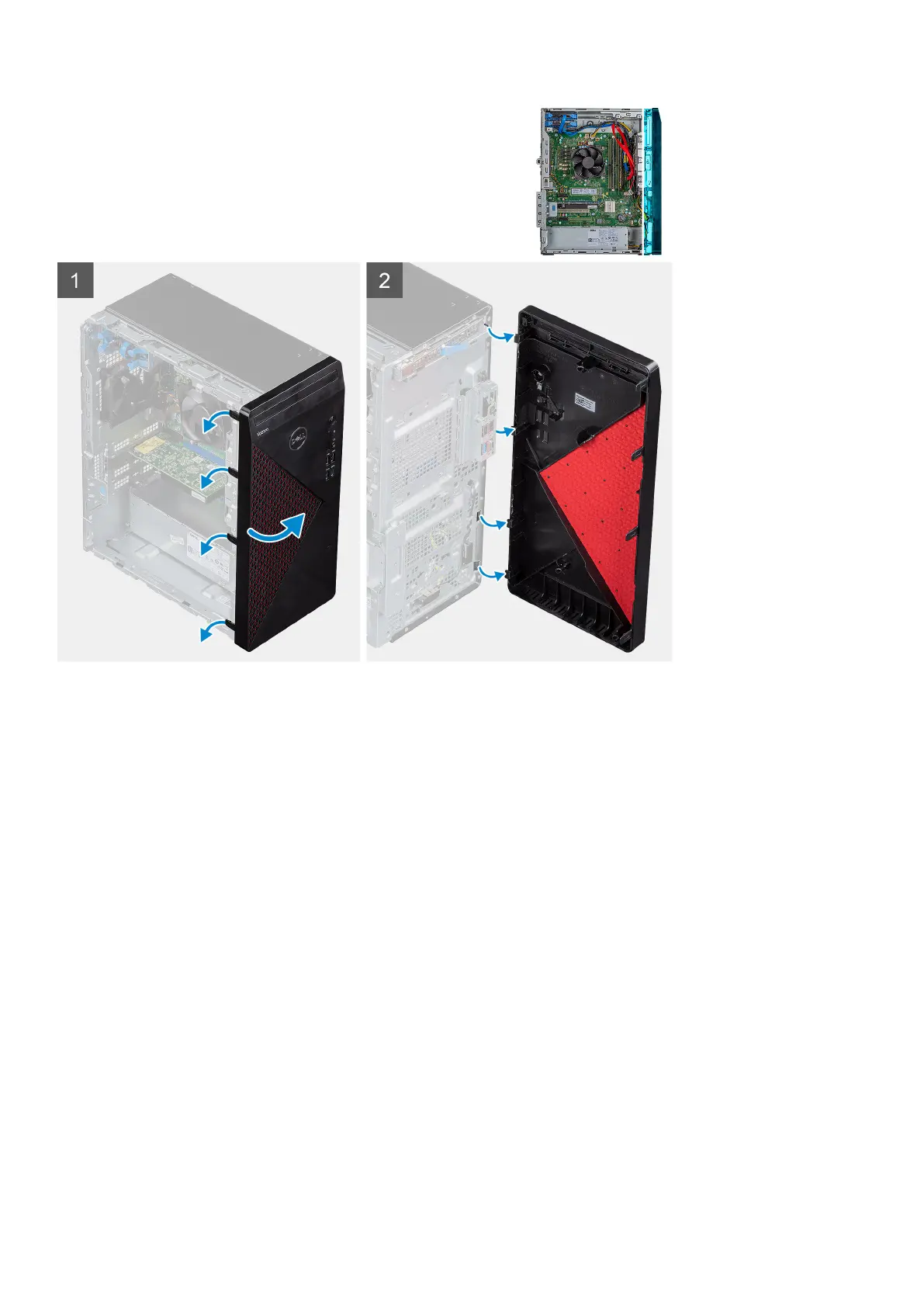

1. Place the computer in an upright position.
2. Gently pry and release the front-cover tabs sequentially from the top.
3. Move the front cover outward from the chassis.
4. Disconnect the front-LED cable from the connector on the front cover.
Installing the front bezel
Prerequisites
About this task
The following images indicate the location of the base cover and provide a visual representation of the installation procedure.
12
Disassembly and reassembly
