Steps
1. Press and hold the securing tab on the chassis and slide the power-supply unit into the chassis until it snaps into position.
2. Replace the three (6-32) screws that secure the power-supply unit to the chassis.

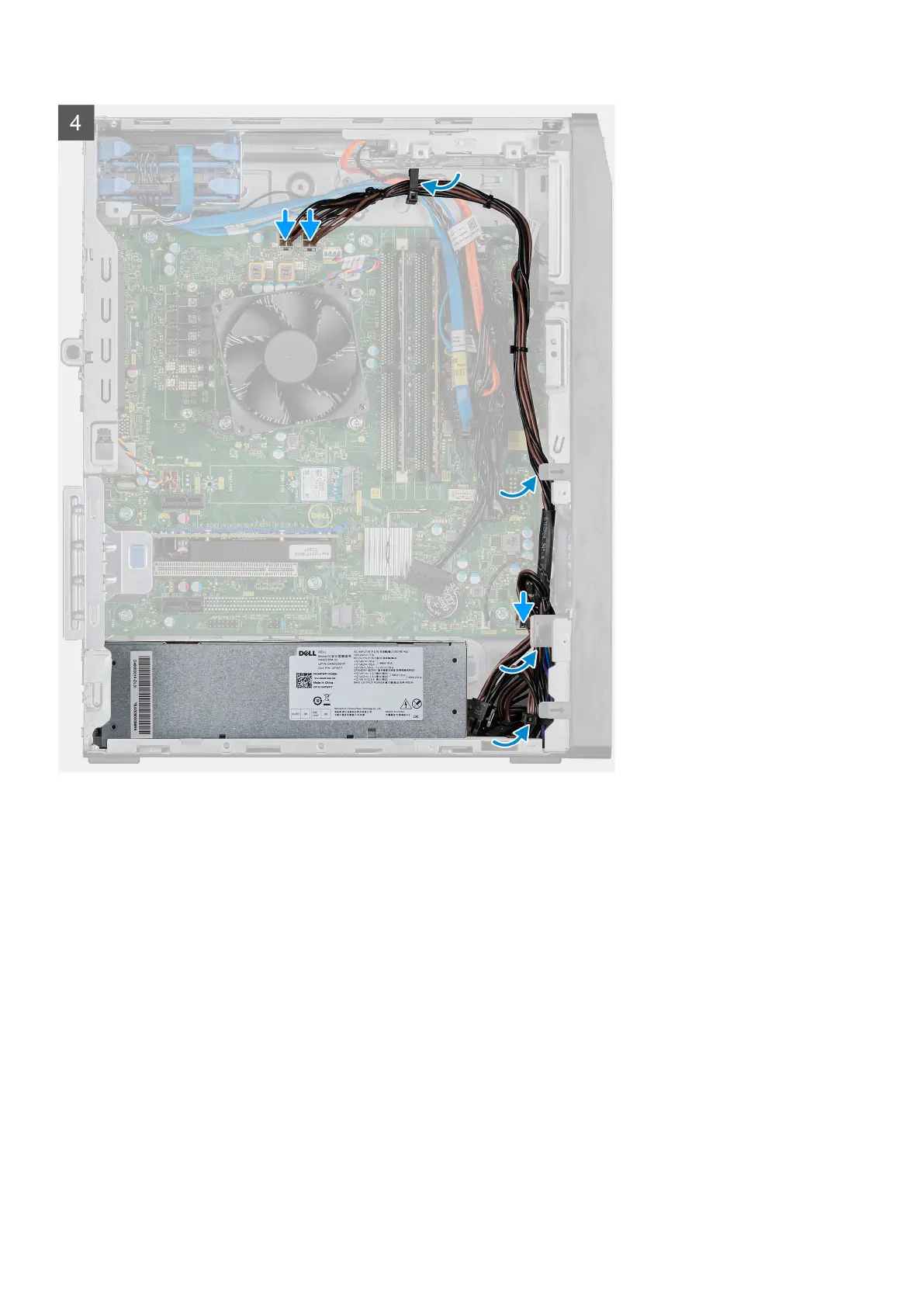

3. Route the power cable through the routing guides on the chassis and connect the power cables to their respective connectors on the
system board.
4. Connect the power cable to the power-supply unit.
Next steps
1. Install the right-side cover.
2. Follow the procedure in After working inside your computer.
Heatsink assembly
Removing the processor fan and heat-sink assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
Disassembly and reassembly
43
