Steps

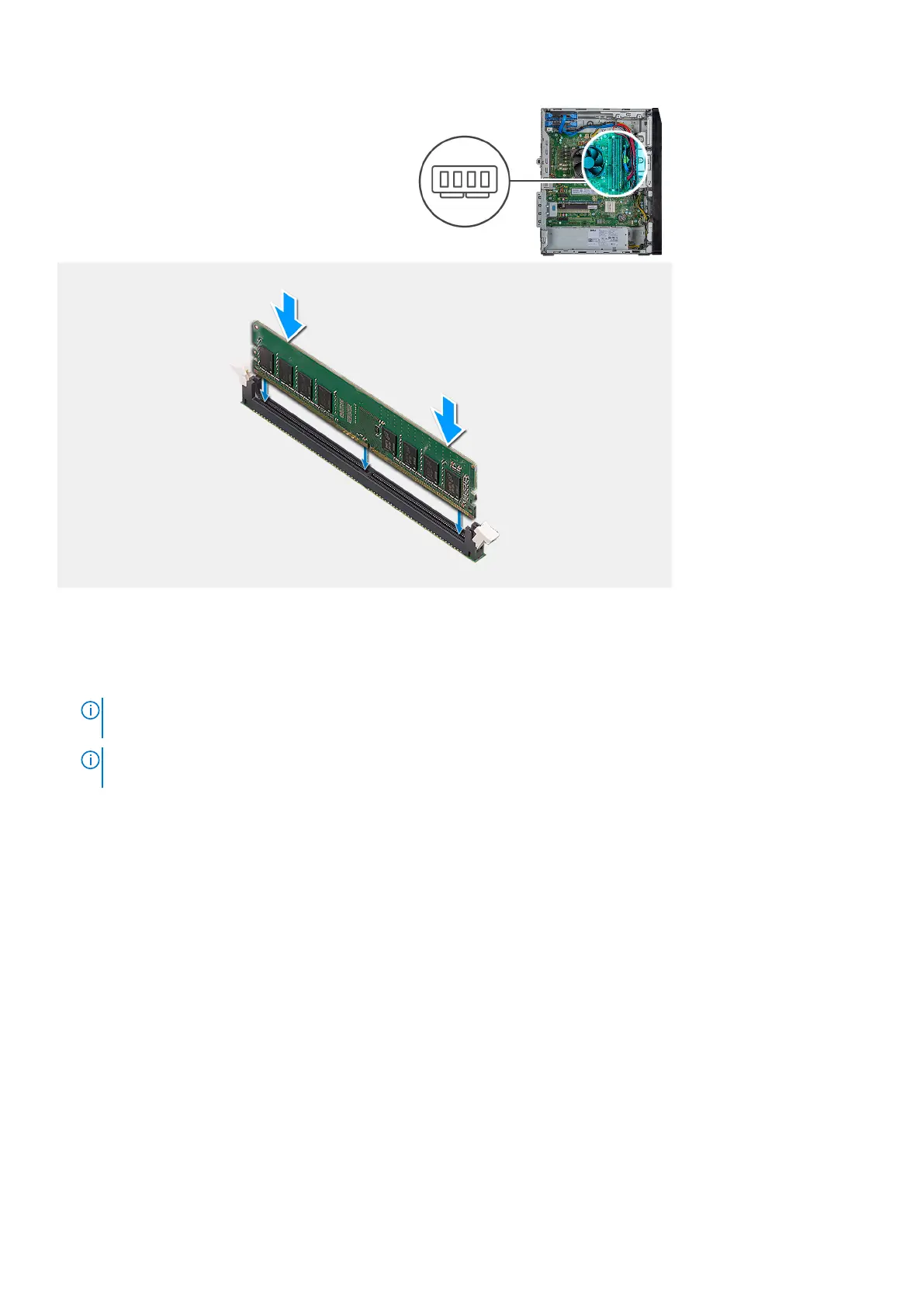

1. Align the notch on the memory module with the tab on the memory-module slot.
2. Insert the memory module into the memory-module connector until the memory module snaps into position and the securing clip locks
in place.
NOTE:
The securing clips return to the locked position. If you do not hear the click, remove the memory module and
reinstall it.
NOTE: To prevent damage to the memory module, hold the memory module by the edges. Do not touch the
components on the memory module.
Next steps
1. Install the right-side cover.
2. Follow the procedure in After working inside your computer.
WLAN card
Removing the wireless card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the right-side cover.
About this task
The following images indicate the location of the wireless card and provide a visual representation of the removal procedure.
Disassembly and reassembly
17
