Steps

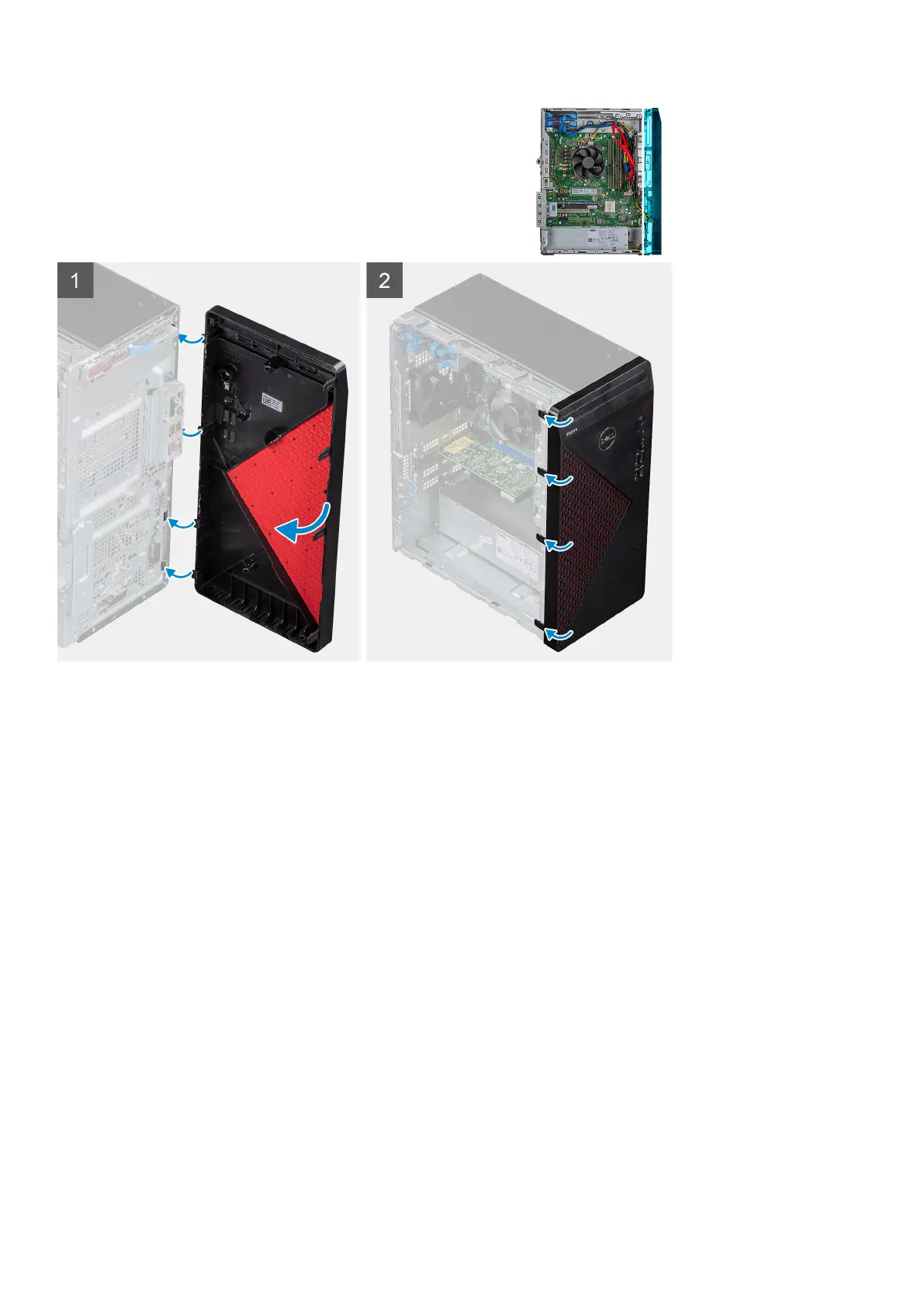

1. Place the computer in an upright position.
2. Align the front-cover tabs with the slots on the chassis.
3. Move the front cover towards the chassis and snap it into place.
Next steps
1. Install the right-side cover.
2. Follow the procedure in After working inside your computer.
Optical drive
Removing the Optical drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
About this task
The following images indicate the location of the optical drive and provides a visual representation of the removal procedure.
Disassembly and reassembly
13
