Steps

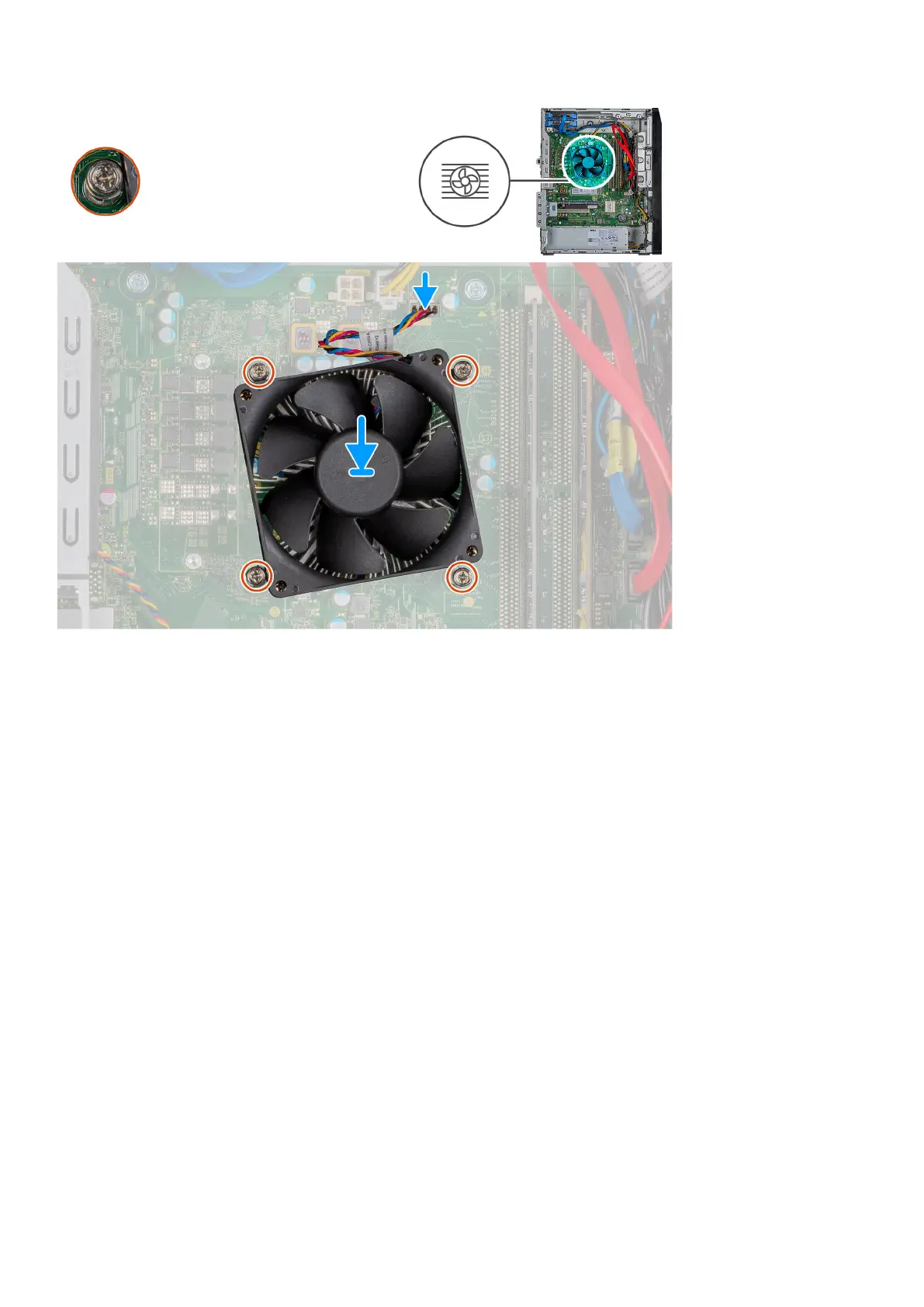

1. Align the screw holes on the processor fan and heat-sink assembly with the screw holes on the system board.
2. As per the callout on the system board, tighten the captive screws that secure the processor fan and heat-sink assembly to the
system board.
3. Connect the processor-fan cable from the system board.
Next steps
1. Install the right-side cover.
2. Follow the procedure in After working inside your computer.
Processor
Removing the processor
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the right-side cover.
3. Remove the processor fan and heat-sink assembly.
About this task
The following images indicate the location of the processor and provide a visual representation of the removal procedure.
Disassembly and reassembly
45
