Steps

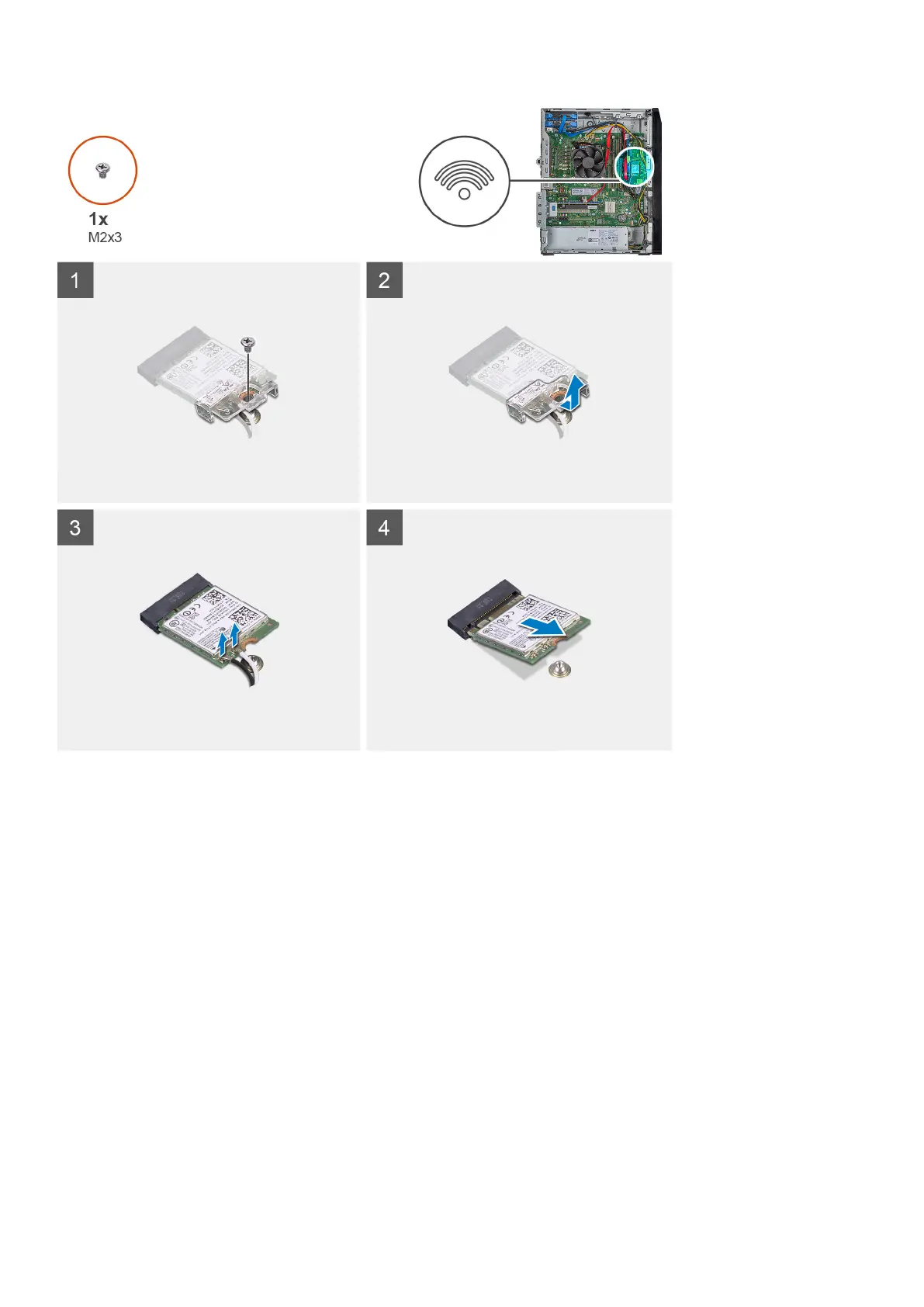

1. Lay the computer on the right side.
2. Remove the single (M2x3) screw that secures the wireless card to the system board.
3. Slide and lift the wireless-card bracket off the wireless card.
4. Disconnect the antenna cables from the wireless card.
5. Slide and remove the wireless card at an angle from the wireless-card slot.
Installing the wireless card
Prerequisites
About this task
The following images indicate the location of the wireless card and provide a visual representation of the installation procedure.
18
Disassembly and reassembly
