Steps

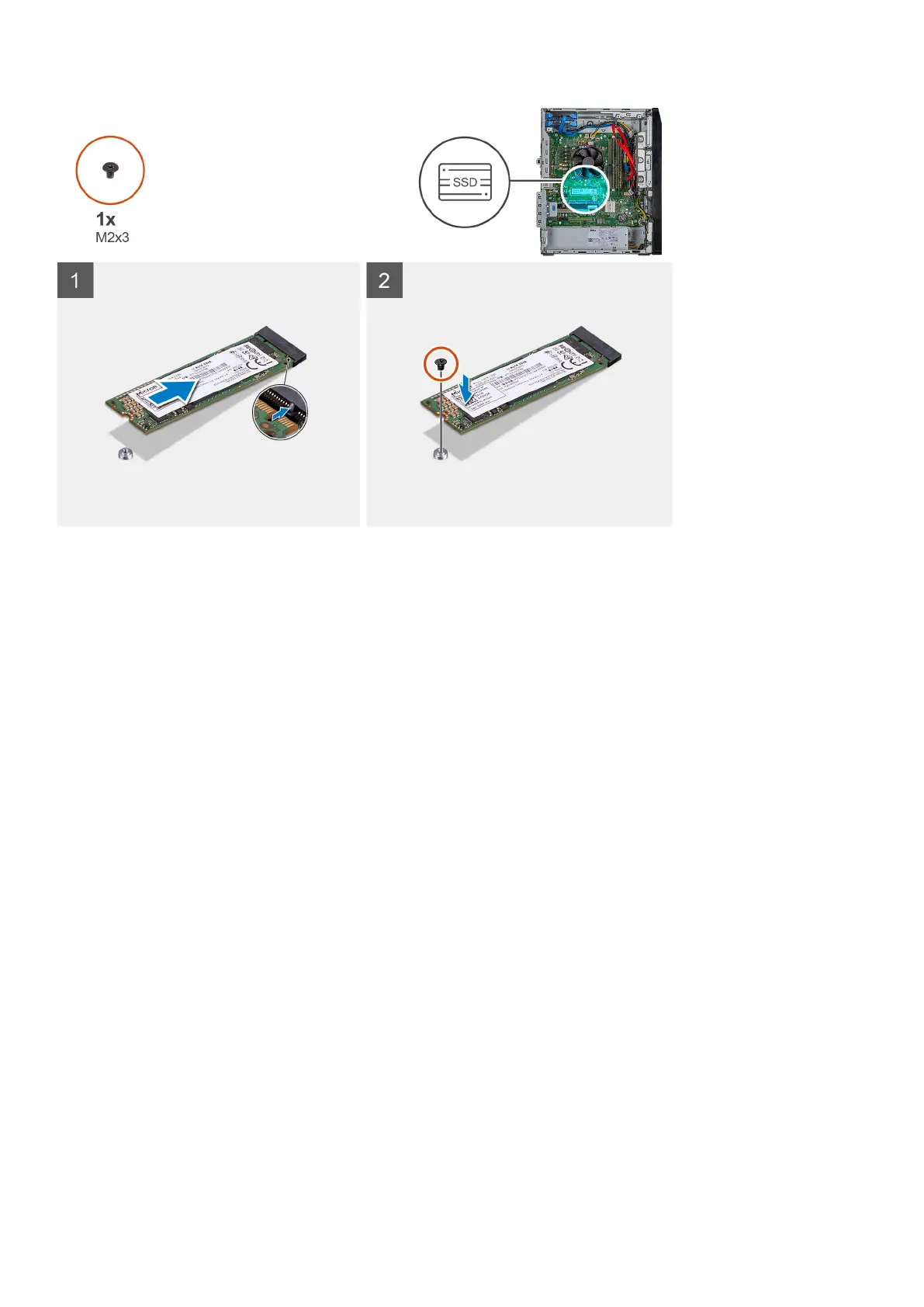

1. Locate the notch on the M.2 2280 solid-state drive/Intel Optane memory.
2. Align the notch on the M.2 2280 solid-state drive/Intel Optane memory with the tab on the M.2 card slot.
3. Slide the M.2 2280 solid-state drive/Intel Optane memory into the M.2 card slot on the system board.
4. Replace the single (M2x3) screw that secures the M.2 2280 solid-state drive/Intel Optane memory to the system board.
Next steps
1. Install the right-side cover.
2. Follow the procedure in After working inside your computer.
System fan
Removing the chassis fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the right-side cover.
About this task
The following images indicate the location of the chassis fan and provide a visual representation of the removal procedure.
