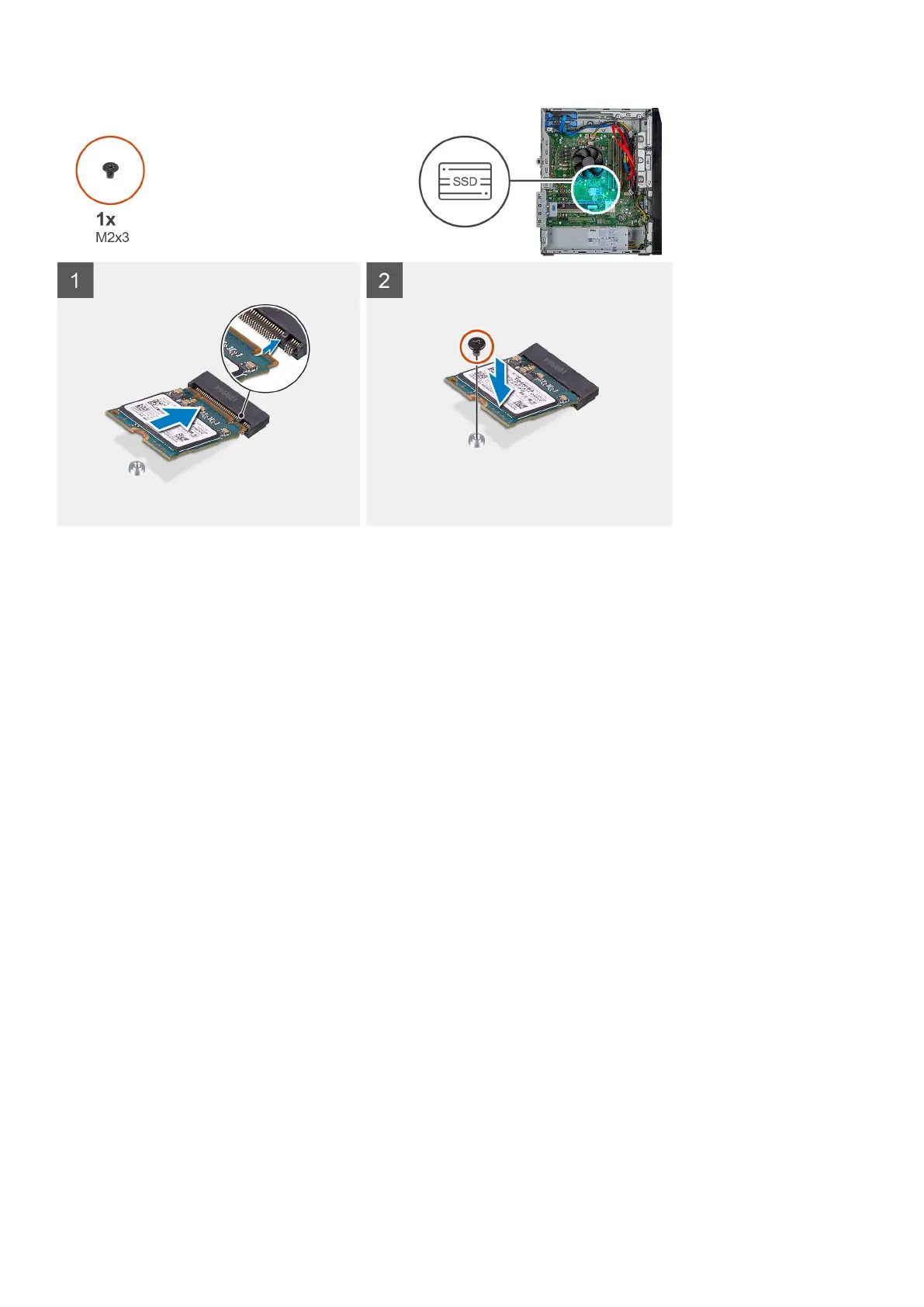

Steps
1. Locate the notch on the 2230 solid-state drive/Intel Optane memory module.
2. Align the notch on the 2230 solid-state drive/Intel Optane memory module with the tab on the M.2 card slot.
3. Slide the 2230 solid-state drive/Intel Optane memory module into the M.2 card slot on the system board.
4. Replace the single (M2xL3) screw that secures the 2230 solid-state drive/Intel Optane memory module to the system board.
Next steps
1. Install the right-side cover.
2. Follow the procedure in After working inside your computer.
Removing the M.2 2280 solid-state drive/Intel Optane
memory module
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the right-side cover.
About this task
The following images indicate the location of the solid-state drive and provide a visual representation of the removal procedure.
Disassembly and reassembly
31
