Steps

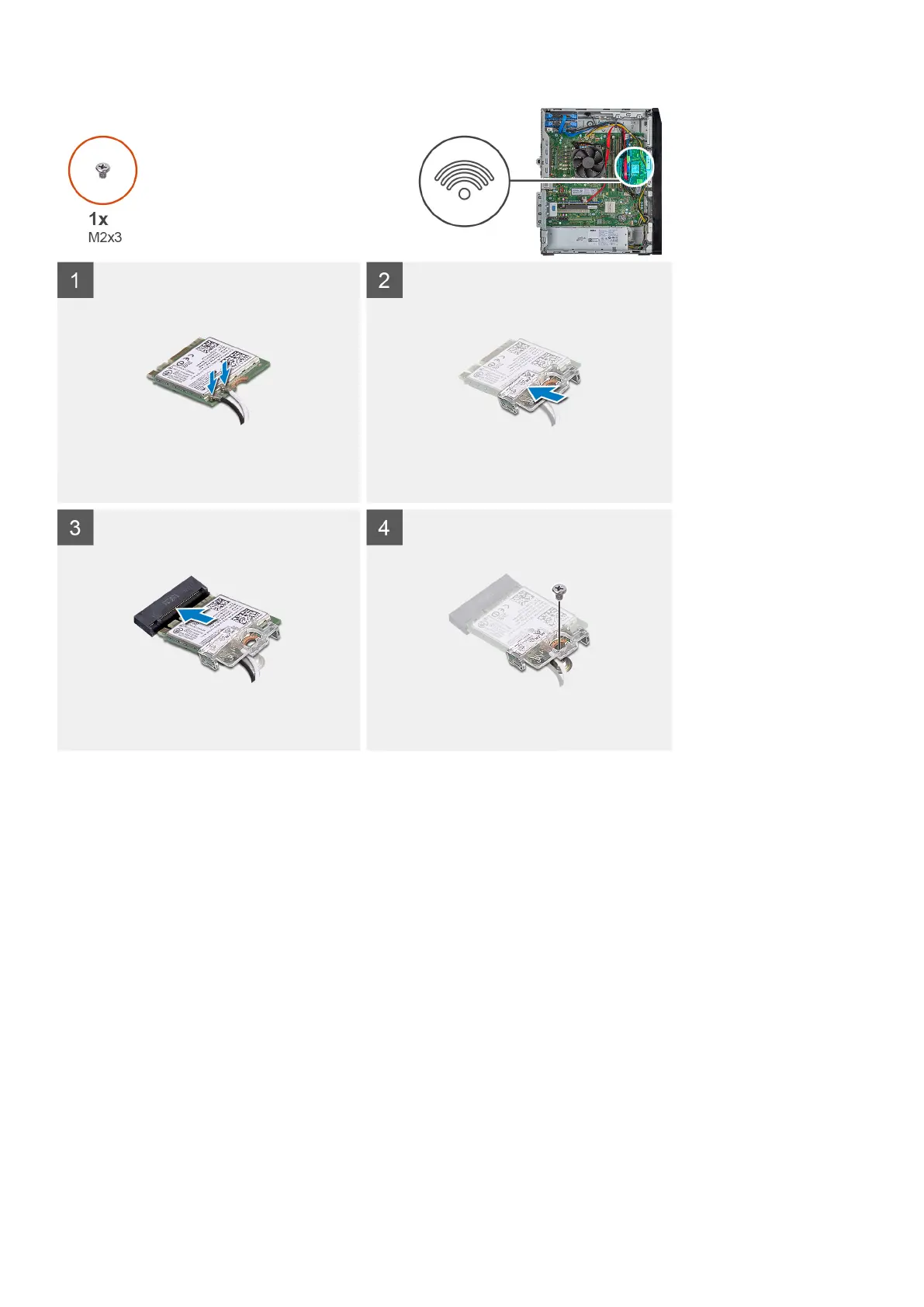

1. Align the notch on the wireless card with the tab on the wireless-card slot.
2. Slide the wireless card at an angle into the wireless-card slot.
3. Connect the antenna cables to the wireless card.
4. Slide and place the wireless-card bracket on the wireless card.
5. Replace the single (M2x3) screw that secures the wireless card to the system board.
Next steps
1. Install the right-side cover.
2. Follow the procedure in After working inside your computer.
Graphics card
Removing the graphics card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
Disassembly and reassembly
19
