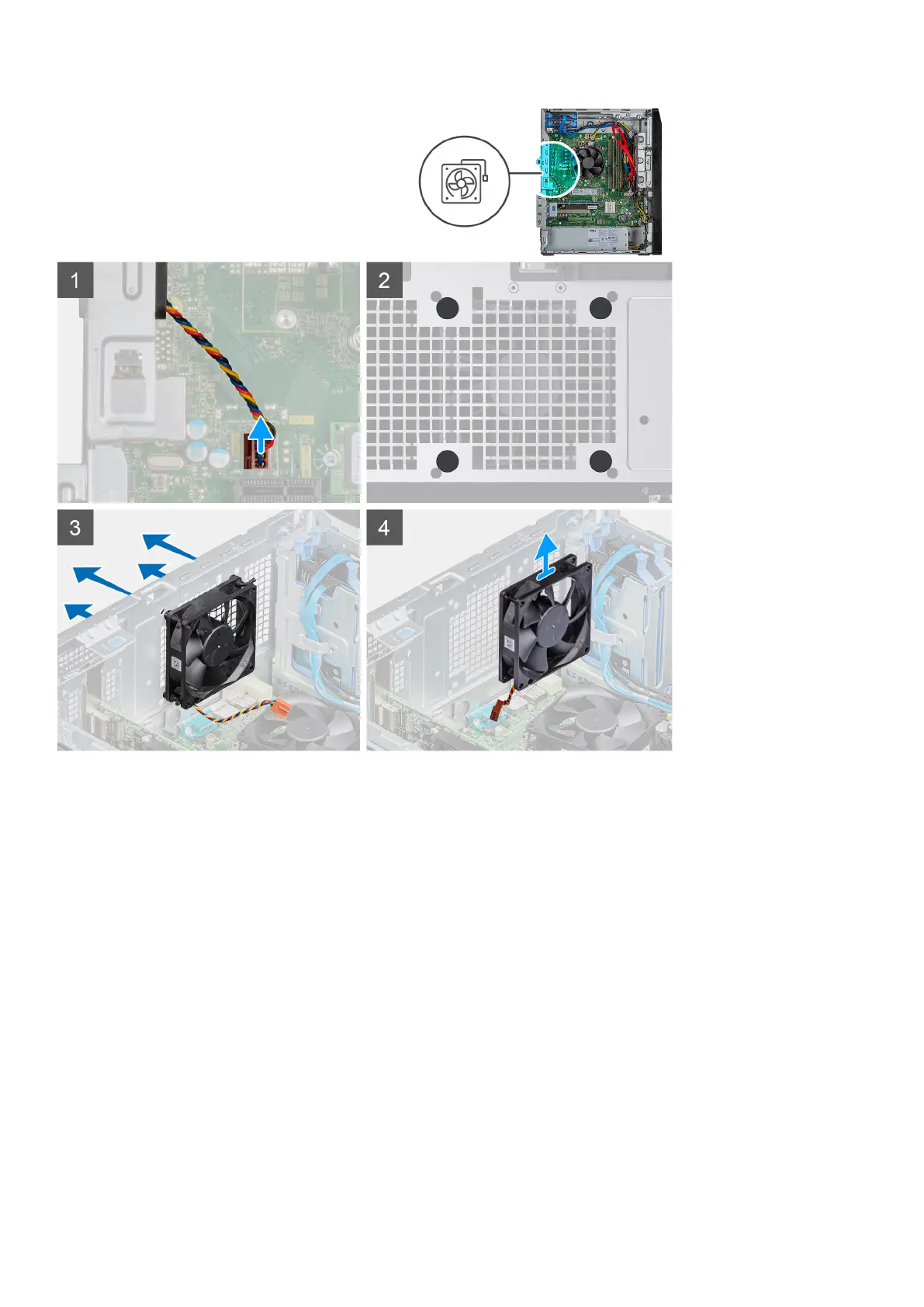

Steps
1. Lay the computer on the right side.
2. Disconnect the fan cable from the system board.
3. Gently pull the fan to release it from the rubber grommets.
4. Remove the fan off the chassis.
Installing the chassis fan
Prerequisites
About this task
The following images indicate the location of the chassis fan and provide a visual representation of the installation procedure.
34
Disassembly and reassembly
