Dell Vostro 5880 - Page 22

2. Remove the right-side cover.
About this task

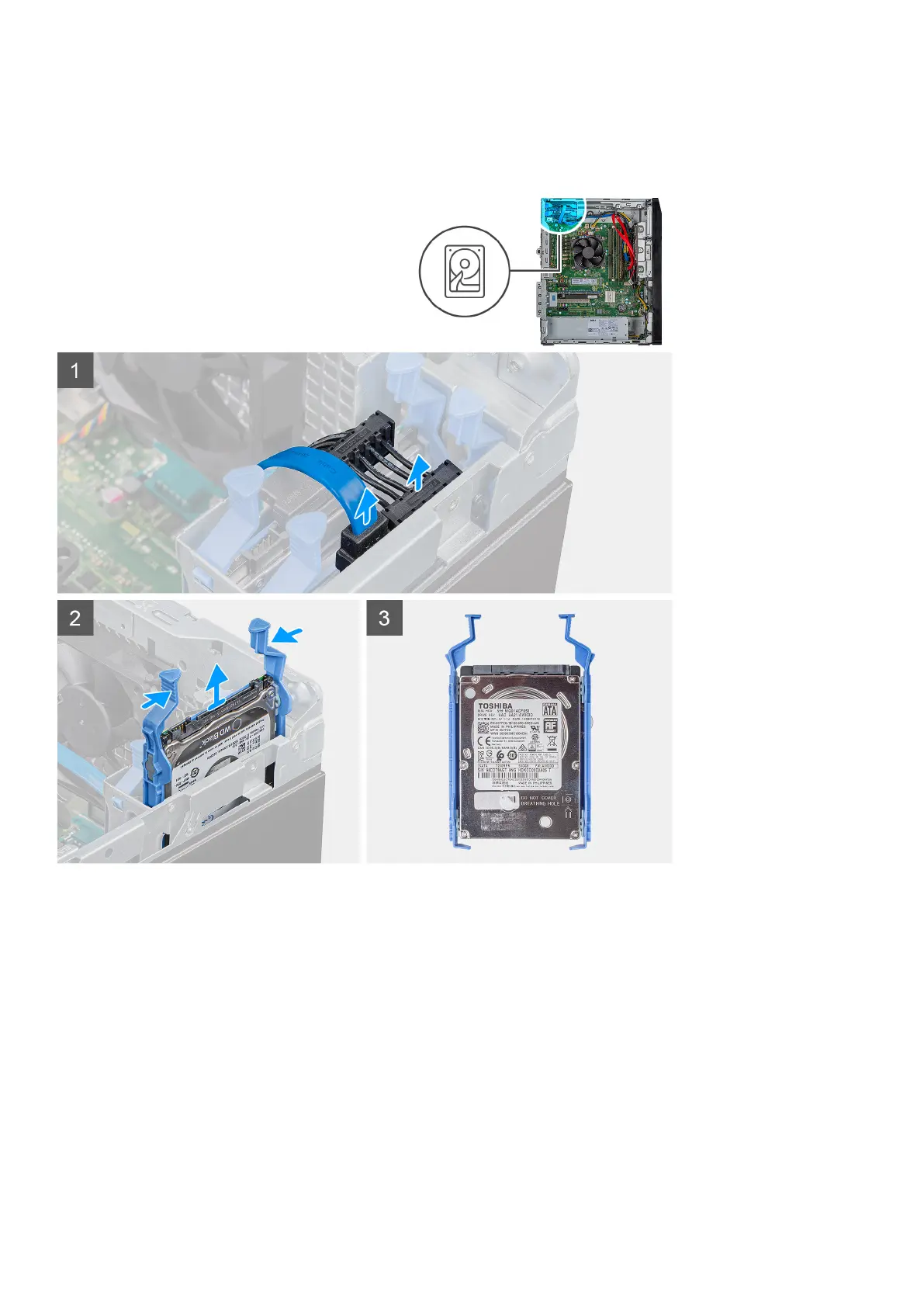

The following images indicate the location of the 2.5-inch hard drive and provide a visual representation of the removal procedure.
Steps
1. Disconnect the data and power cables from the hard drive.
2. Press the release tabs on the hard-drive carrier and slide the hard-drive assembly out of the hard-drive cage.
22
Disassembly and reassembly
