20 Speakers
2

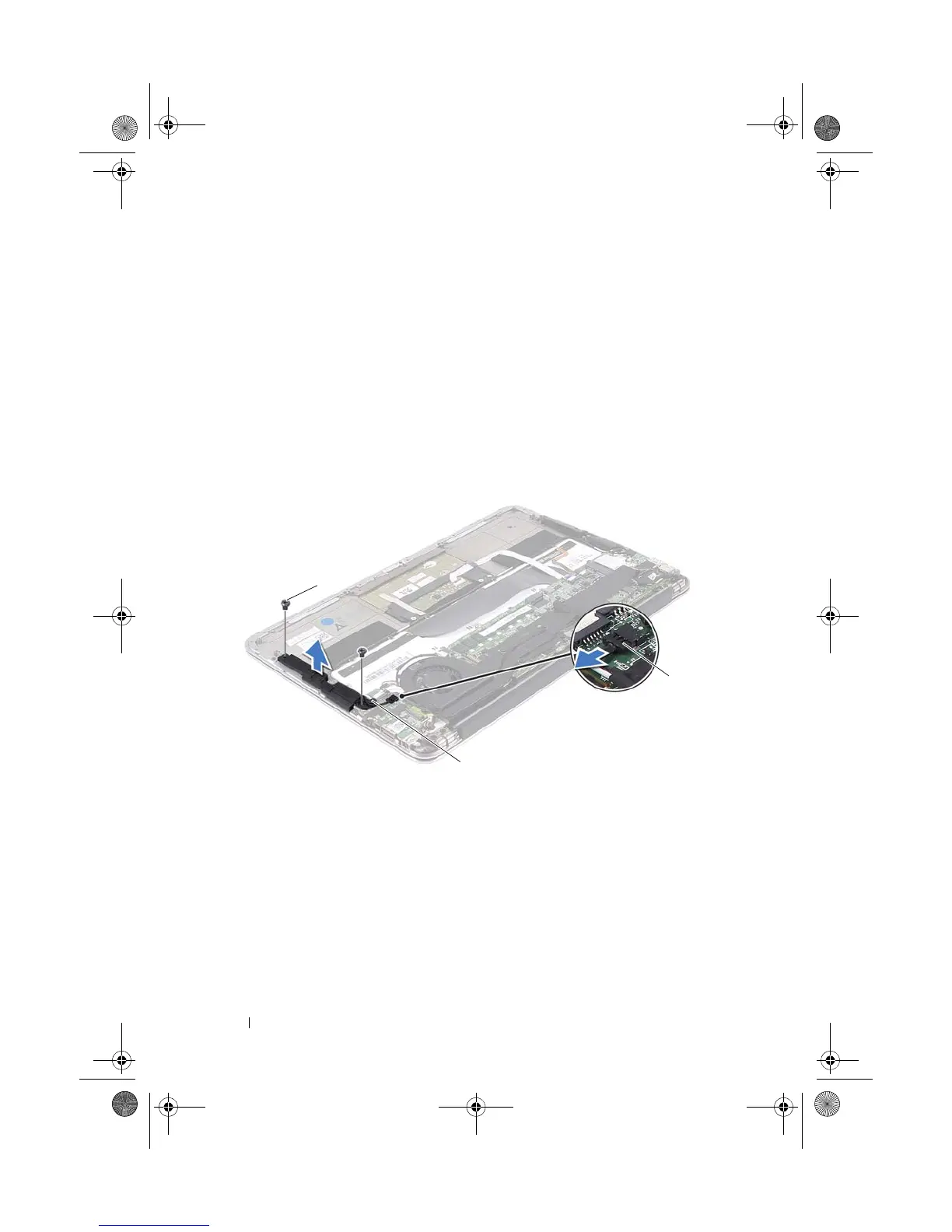

Disconnect the left-speaker cable from the system-board connector.
3
Release the Mini-Card cables from the routing guide on the left speaker.
4
Remove the two screws that secure the left speaker to the palm-rest
assembly.
5
Lift the left speaker from the palm-rest assembly.
Right Speaker
1
Disconnect the right-speaker cable from the system-board connector.
2
Remove the two screws that secure the right speaker to the palm-rest
assembly.
1 I/O cable 2 I/O board connector
3 system-board connector
1 screws (2) 2 routing guide
3 left-speaker cable
Spyder_OM_Book.book Page 20 Monday, January 16, 2012 11:02 AM
