38 Power-Adapter Connector
2
Disconnect the Mini-Card cables from the connectors on the Mini-Card.
3
Lift the connector latch and pull the pull-tab to disconnect the touchpad
cable from the connector on the system board.
4
Release the Mini-Card cables from the routing guides.
5
Disconnect the power-adapter connector cable from the system-board
connector.
6
Release the power-adapter connector cable from the routing guides.

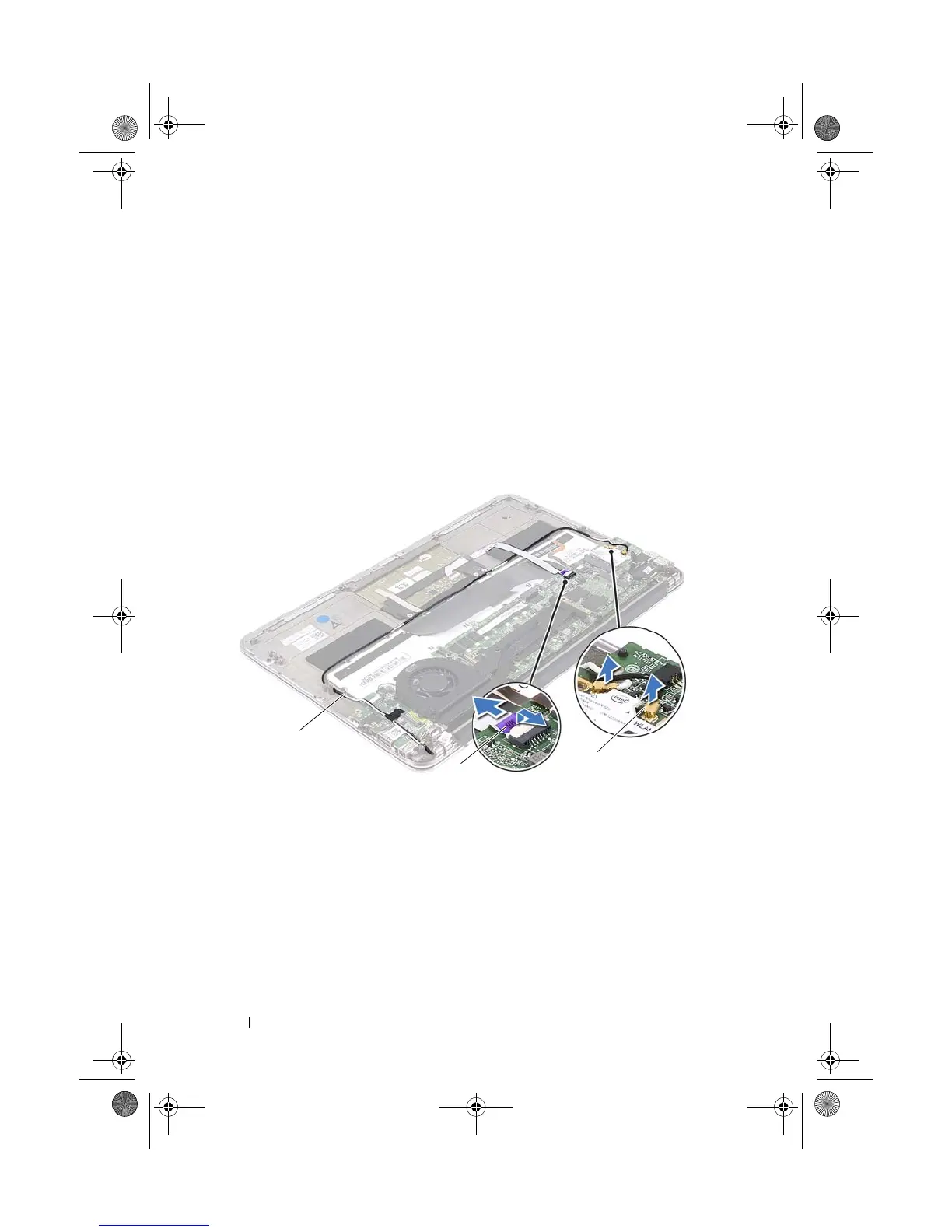

1 I/O cable 2 I/O board connector
3 system-board connector
1 routing guides 2 touchpad cable
3 Mini-Card cables (2)
