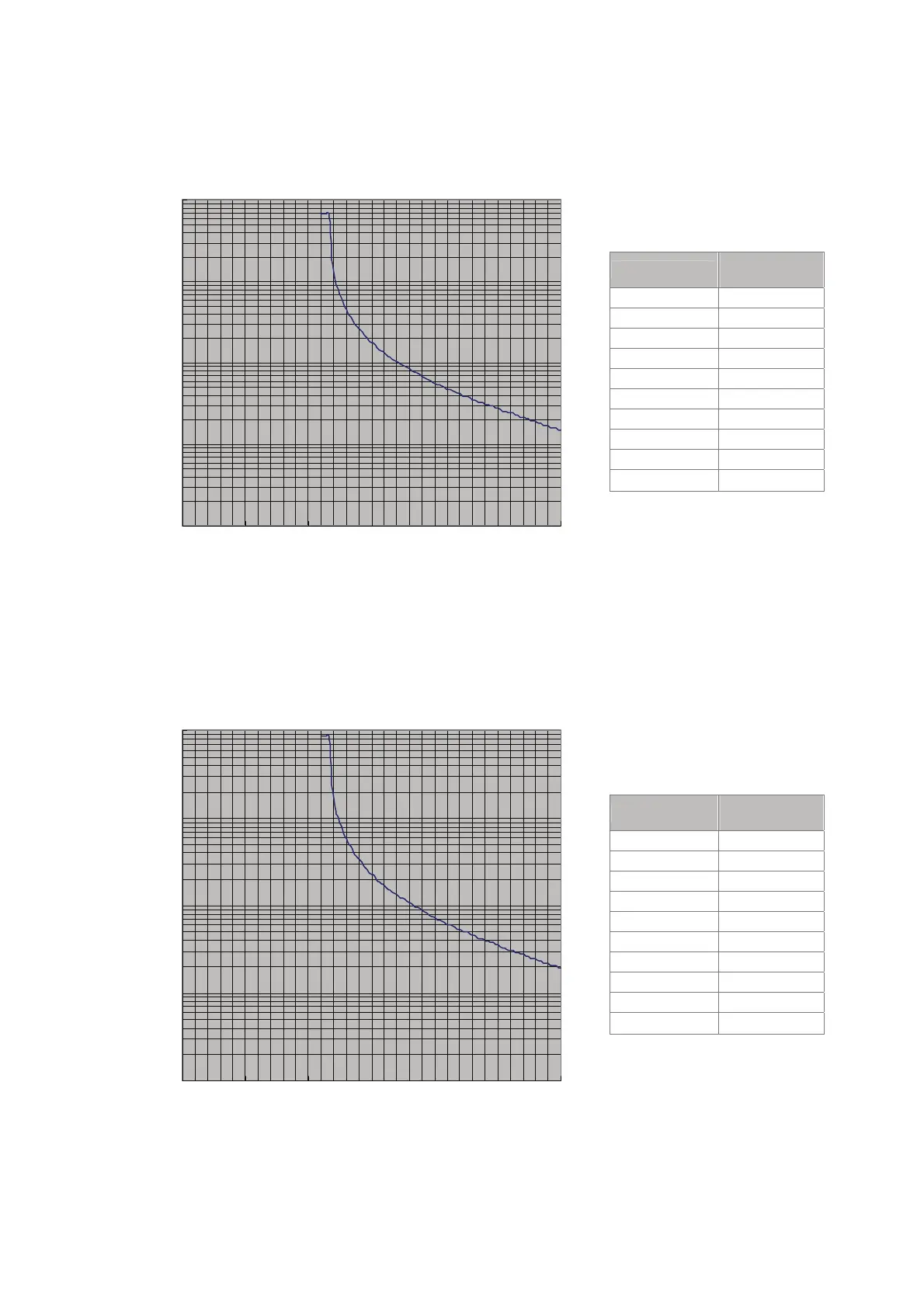

 Chart of load and operating time (ECMA-E31310)
0.1
1
10
100
1000
0 50 100 150 200 250 300
Load (% rated torque)
Operating Time (seconds)
Load
Operating
Time
120% 130.0s
140% 25.7s
160% 13.3s
180% 8.4s
200% 5.6s
220% 4.2s
240% 3.1s
260% 2.4s
280% 1.9s
300% 1.5s
 Chart of load and operating time (ECMA-E31315)
0.1
1
10
100
1000
0 50 100 150 200 250 300
Load (% rated torque)
Operating Time (seconds)
Load
Operating
Time
120% 167.2s
140% 33.1s
160% 17.1s
180% 10.8s
200% 7.2s
220% 5.4s
240% 4.0s
260% 3.1s
280% 2.5s
300% 1.9s
