Chapter 11 Specifications|ASDA-AB Series
Revision January 2009 11-15

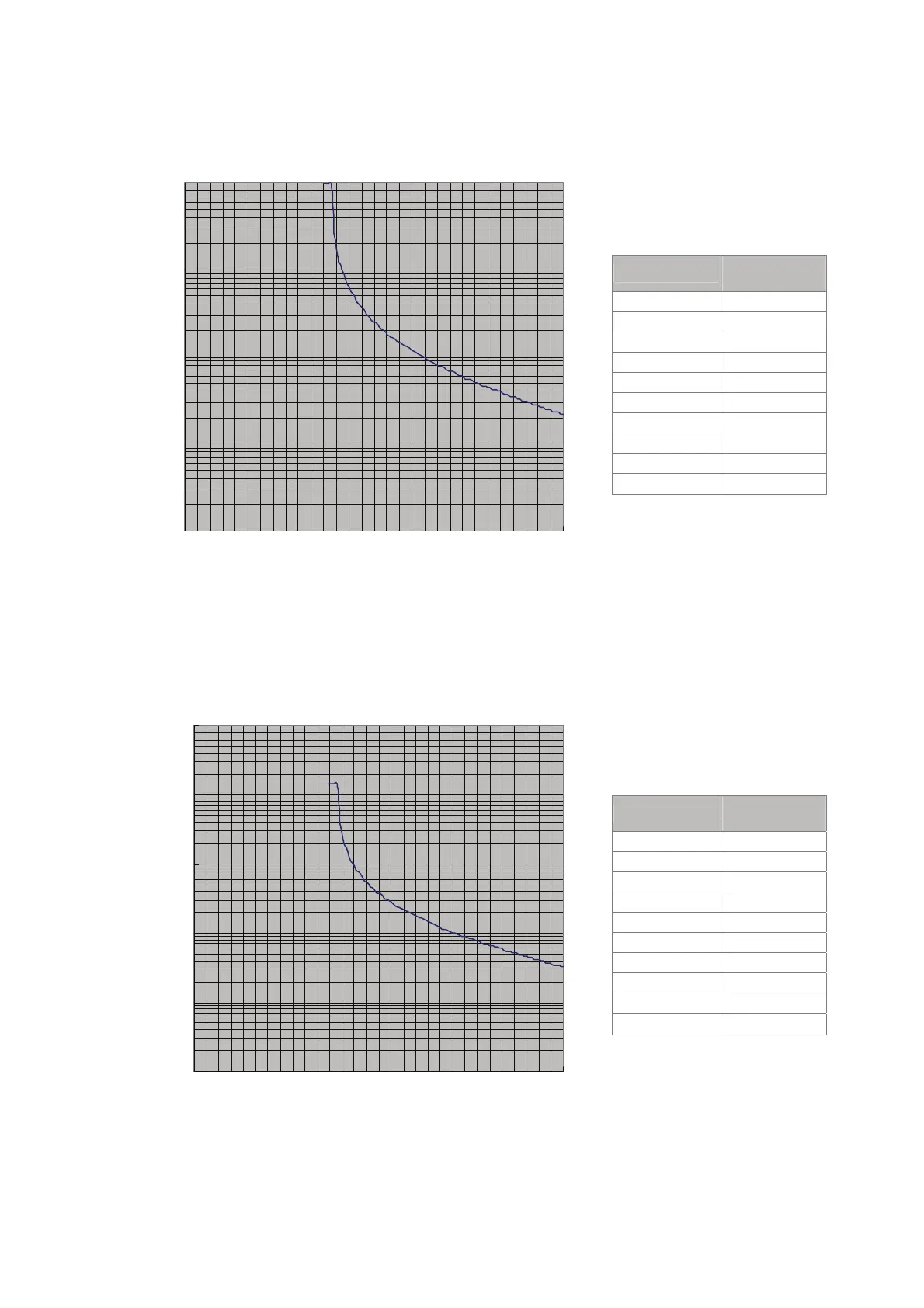

 Chart of load and operating time (ECMA-E31320)
0.1
1
10
100
1000
0 50 100 150 200 250 300
Load (%) rated torque
Operating Time (seconds)
Load
Operating
Time
120% 185.78s
140% 36.78s
160% 18.98s
180% 11.95s
200% 8s
220% 5.99s
240% 4.39s
260% 3.44s
280% 2.76s
300% 2.15s
 Chart of load and operating time (ECMA-E31820)
0.1
1
10
100
1000
10000
0 50 100 150 200 250 300
Load (%) rated torque
Operating Time (seconds)
Load
Operating
Time
120% 278.67s
140% 55.17s
160% 28.47s
180% 17.925s
200% 12s
220% 8.985s
240% 6.585s
260% 5.16s
280% 4.14s
300% 3.225s
