Chapter 6 Control Mode of Operation ASDA-M
6-60 Revision December, 2014

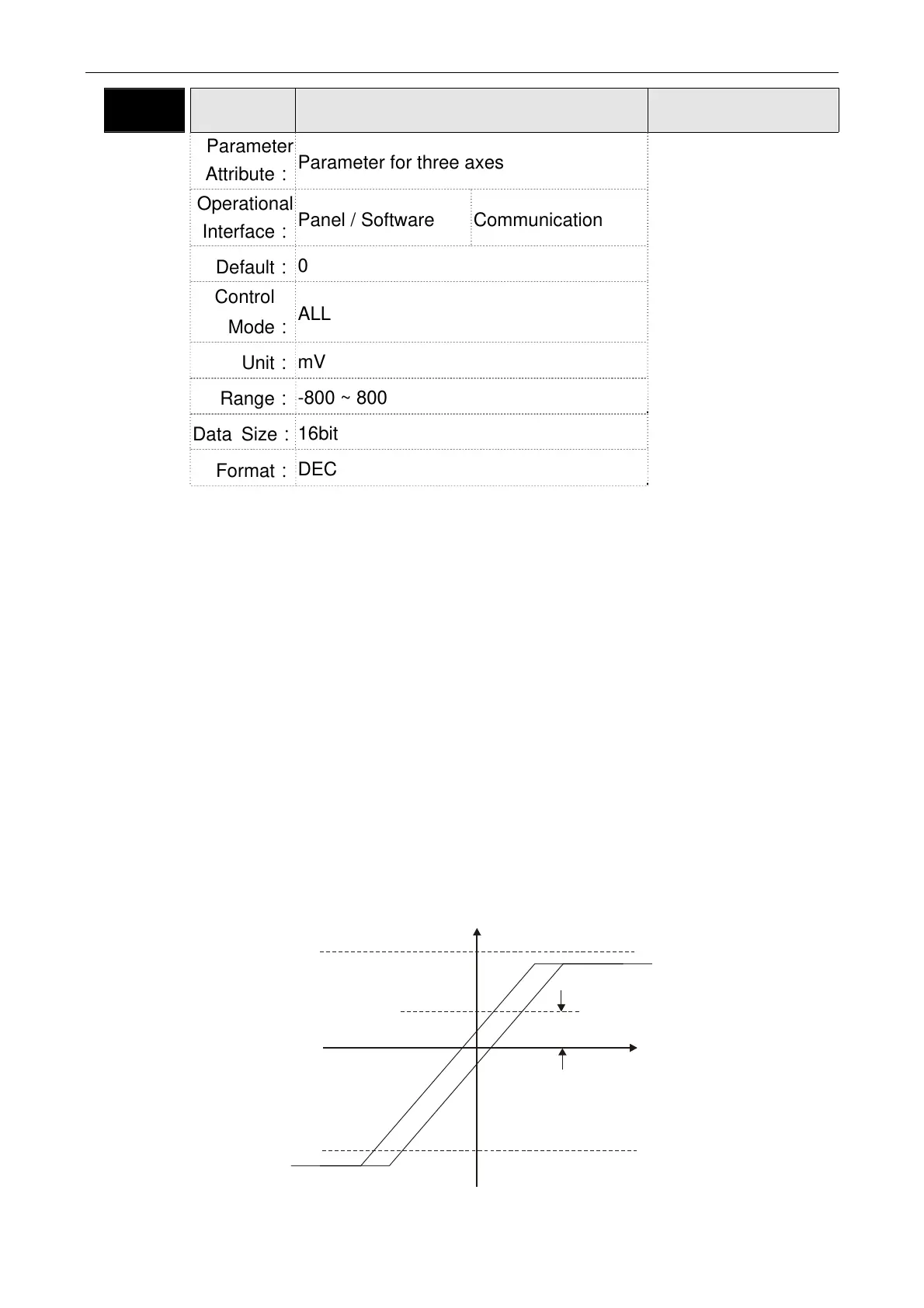

P4-21 DOF2
Offset Adjustment Value of Analog
Monitor Output (Ch2)
Address: 042AH
042BH
Parameter
Attribute
:
Parameter for three axes
Related Section:
Section 6.6.3
Operational
Interface
:
Panel / Software Communication
Default:
0
Control
Mode
:
ALL
Unit:
mV
Range:
-800 ~ 800
Data Size:
16bit
Format:
DEC
Settings:
Offset adjustment value (cannot reset)
For example, if users desire to observe the voltage signal in channel 1 and set this
channel for observing the pulse command frequency, when the pulse command
frequency 2.25M corresponds to 8V output voltage, users need to adjust the monitor
output proportion of P1-04 to 50 (= 2.25M/ Max. input frequency). Other related settings
include P0-03 (X= 3) and P1-03 (The polarity setting range of monitor analog output is
between 0 and 3, and it can set positive/negative polarity output). Generally speaking,
the output voltage of Ch1 is V
1
, the pulse command frequency is (Max. input frequency ×
V
1
/8) × P1-04/100.
Because of the offset value, the zero voltage level of analog monitor output does not
match to the zero point of the setting. This can be improved via the setting of offset
adjustment value of analog monitor output, DOF1 (4-20) and DOF2 (P4-21). The voltage
level of analog monitor output is ±8V, if the output voltage exceeds the range, it will be
limited within ±8V. The provided resolution is about 10bits, which equals to 13mV/LSB.
8V
DOF
-8V
